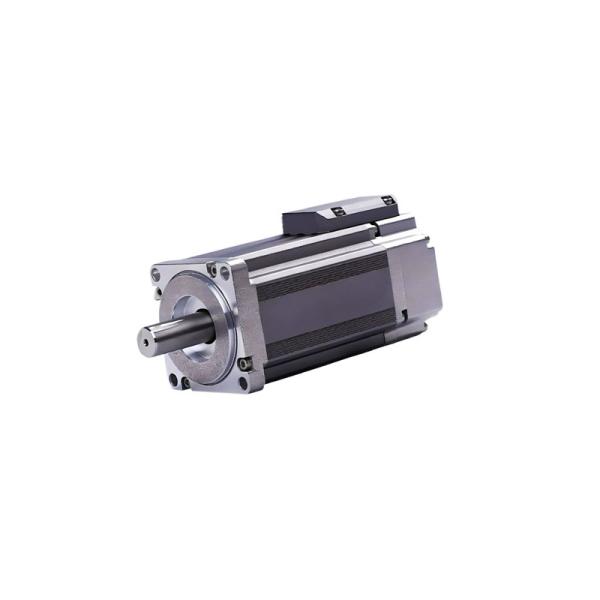

Flange 40mm Servo Motor with Encoder Customizable Feedback 50W 100W 200W 0.3N.m 3000rpm

Product Tag: 40mm Servo Motor , 40mm Servomotor , 40mm AC Servo Motor , 50W Servo Motor , 100W Servo Motor , 200W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: This motor is engineered to achieve an exceptionally low mutual inductance, essentially nearing zero.
• Optimized Heat Dissipation: The motor incorporates advanced thermal management features that facilitate rapid heat dissipation and ensure a uniform temperature profile.
• Structural Optimization: Its structural design prioritizes robust performance, enhancing both durability and reliability.
• Special Core Design: The motor operates with minimal noise, vibration, and torque ripple, leading to smoother functionality.
• High Slot Fill Factor: By utilizing a larger wire diameter, the motor reduces resistance and generates 20% less heat, thanks to a higher slot fill factor.
• Open-Ended Shaft Design: This design allows for the easy installation of various encoders, providing customers with flexible options.
• Optimized Permanent Magnet Design: The use of advanced rare-earth permanent magnets with high intrinsic coercivity ensures strong resistance to demagnetization.
• High-Resolution Encoder: This motor features a high-resolution encoder, increasing positional accuracy by a factor of 64.
• Advanced Manufacturing Techniques: Manufactured in Japan with cutting-edge technology, this motor delivers high reliability and consistent performance.
• High-Performance Core: The core is designed for high magnetic loads with minimal iron loss, achieving over a 20% reduction in size while remaining lightweight.
• New Magnetic Field Analysis Technology: Featuring a ten-level optimized rotor design, the motor significantly enhances output and can handle overloads of 3 to 4 times.
• Supporting Customization: Our Brushless Servo Motors, available in diameters from 40 mm to 180 mm, can be customized to meet various specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø 40mm Brushless Servo Motor :

• Motor Flange: 42.5 mm
• Rated Voltage: 24V DC to 48V to 220V or customized
• Rated Torque: 0.2N.m to 0.3N.m or Customized
• Rated Speed: 3000rpm or Customized
• Rated Power: 50W to 200W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.
