Specifications
Brand Name :
JUYI
Model Number :
JY11M
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T，Paypal
Supply Ability :
1000sets/day
Delivery Time :
5-8 working days
Packaging Details :
PE bag+ carton
Description

JUYI N Channel Super Trench Power MOSFET with fast switching and reverse body recovery

JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

GENERAL DESCRIPTION
The product utilizes the latest super trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
FEATURES
● 100V/155A, RDS(ON) =3.5mΩ@VGS=10V(Typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation
APPLICATIONS
● DC/DC converters
● Hard switched and high frequency circuits
● Synchronous rectification

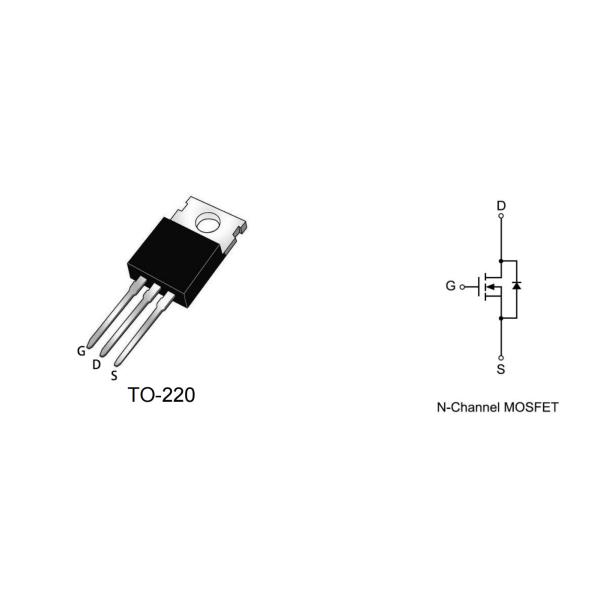

PIN DESCRIPTION
JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

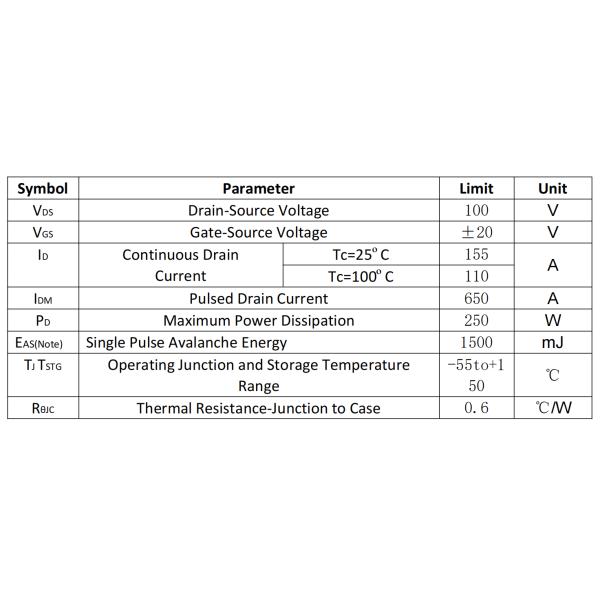

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery

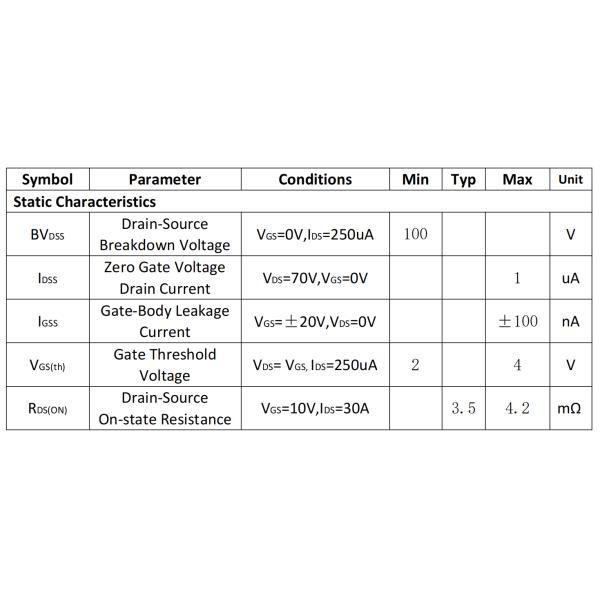

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI N Channel Super Trench Power MOSFET With Fast Switching And Reverse Body Recovery
DOWNLOAD THE USER MANUAL OF JY11M
