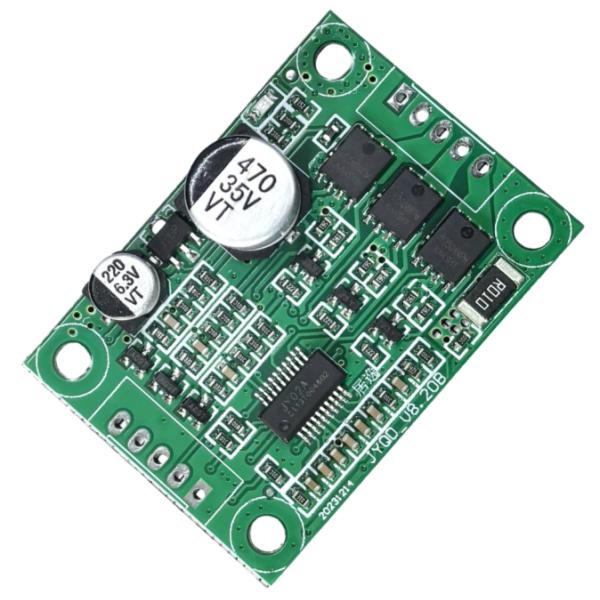

5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor
Specifications
Brand Name :
JUYI
Model Number :
JYQD-V8.20B
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
1000sets/day
Delivery Time :
3-5 working days
Packaging Details :
PE bag+ carton
Working Voltage :
5V~28V DC
Max Current :
5A
Operating temp.（℃） :
-20—85 （℃）
Analog voltage speed regulation(v) :
0-5V
OV/UV protection :
YES
technical support :
YES
Description

5V~28V DC Wide Voltage Range Brushless Motor Controller , 5A driver board for no Hall BLDC Motor

5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor

Model JYQD_V8.20B
Working Voltage 5VDC~28VDC
Max Current 5A
Working Current ＜5A
PWM Speed Control PWM frequency:1-20KHz, Duty Cycle 0-100%
O.V/L.V protection Yes
Working Temperature -20℃~85℃
Analog voltage speed regulation 0-5V
Speed pulse signal output Yes

Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do
the adjustment)
3.JYQD_V8.20B drive board is bare board, drive power below 36W motor does not need to force heat dissipation, need to ensure normal ventilation.
4.The 5V output port on the driver board is prohibited from connecting to external electrical equipment. It is only suitable for connecting external potentiometers and switches to this board for speed regulation and reversal.
5. The M port on the JYQD_V8.20B drive board is the output of the motor speed pulse signal, and
the output current is less than 5mA.

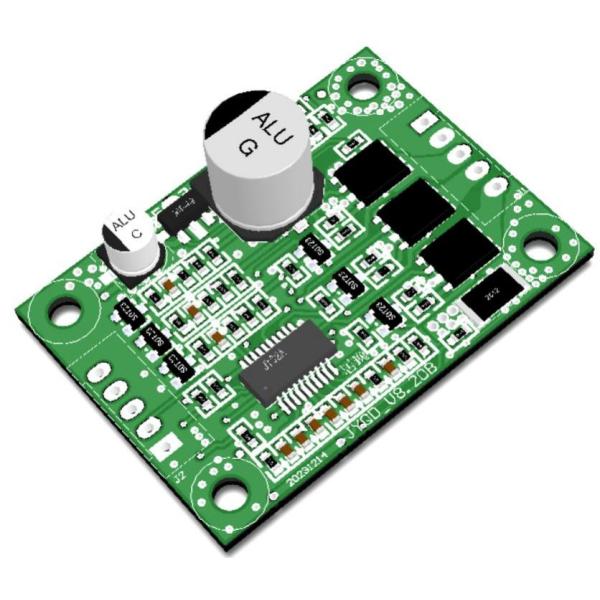

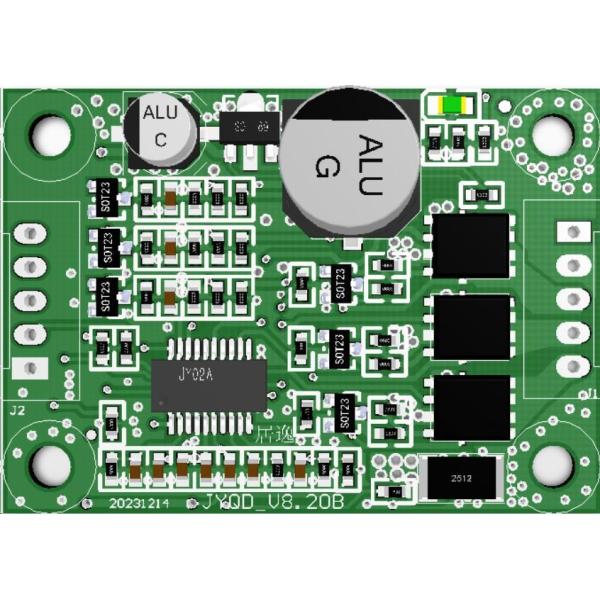

Driver Board Diagram
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor

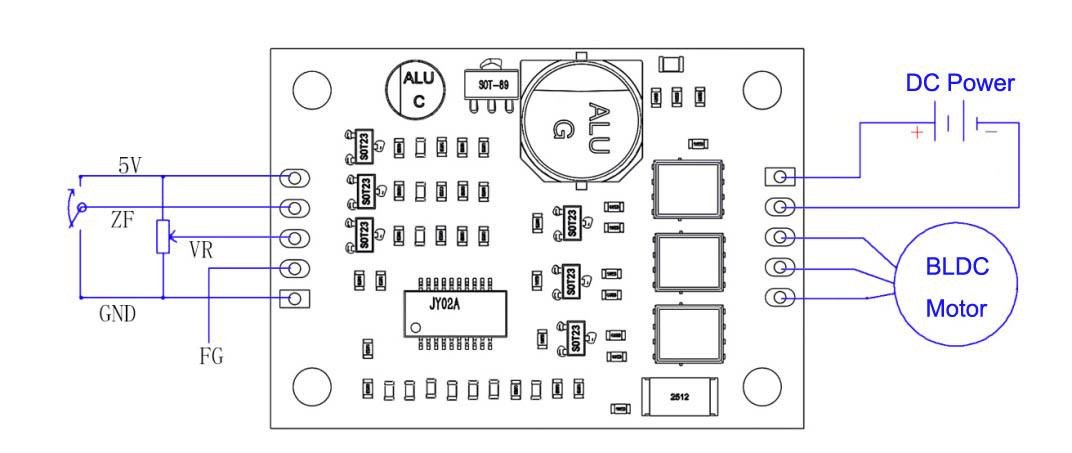

Wiring Diagram
5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor

Port Description

1.Control Port (Left)

GND — Used for Driver board internal control

VR — Speed control port. Analog voltage speed regulation 0.1V-5V speed regulation, linear speed regulation from low to high. PWM speed regulation needs to be grounded with the driver board.

Z/F — Rotating direction control ports.Connect 5V high level or no connect in one direction, connect 0V low level or GND to the other direction.

FG — Motor speed pulse signal output port, 5V pulse signal

5V — Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation.

2. Power Port(Right)

P+ — DC +

P- — DC -

MC — Motor Phase C

MB — Motor Phase B

MA — Motor Phase A

3. Please pay attention to the motor phase wire and Hall wire not to be too long, because the driver board relies on back electromotive force detection, it will cause signal interference If the wire is too long.

4. The port distance is 2.54mm for both Power port and Control Port.

5. When adding heat sink or placing the driver board, please pay attention to the insulation for the driver board.

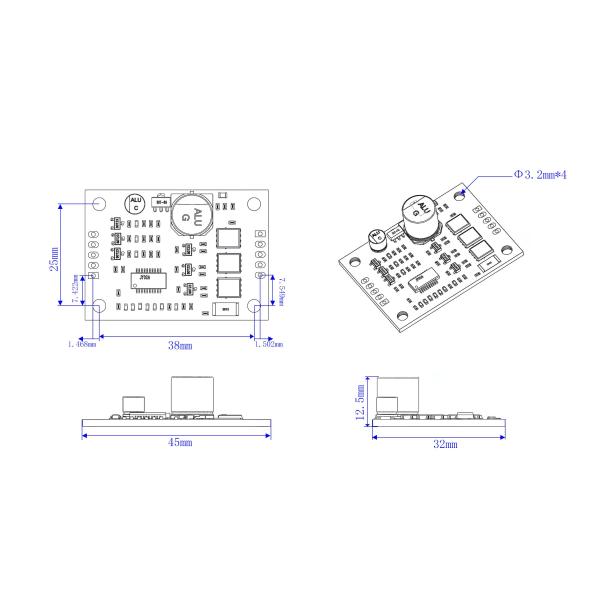

Dimensional drawing

Unit: mm

5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC Motor

DOWN LOAD THE USER MANUAL OF JYQD-V8.20B

5V~28V DC Wide Voltage Range Brushless Motor Controller 5A Driver Board For No Hall BLDC MotorJYQD_V8.20B--English.pdf
