JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A
Specifications
Brand Name :
JUYI
Model Number :
JYQD-N6.32
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T，Paypal
Supply Ability :
1000sets/day
Delivery Time :
5-8 working days
Packaging Details :
PE bag+ carton
Working Voltage :
12-24V
Max. Current :
3A
PWM Speed Contro :
PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation :
0-5V
O.V / L.V protection :
YES
Size :
49mm*49mm*9.5mm
Description

JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A

JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A

JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A

Applications:

This product is suitable for 50, 60, 70 series water pumps, fans and other DC brushless motors (according to the function expansion customization, it can be used for booster pumps, solar water heater pumps, HVAC pumps and other special function water pumps and fans)

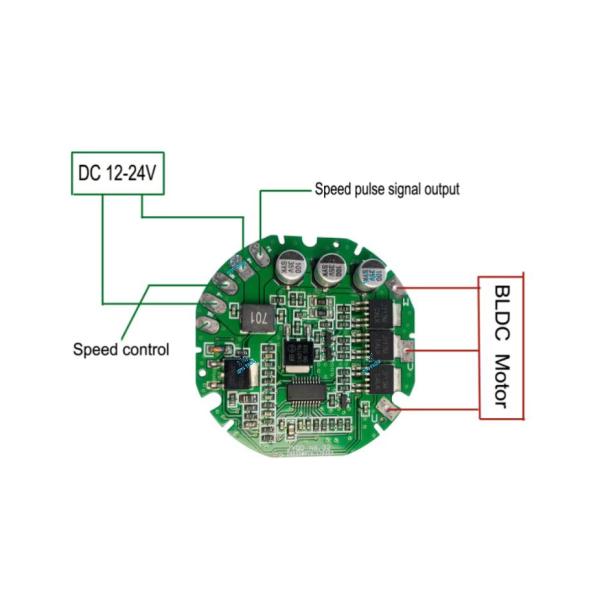

Wiring Diagram:

JUYI BLDC Water Pump Driver Fan Controller DC Motor Speed Regulator Speed Pulse Signal Output 3A

5V ----- 0-5V Analog voltage speed regulation (It can be left floating when not needed, but no external electrical equipment should be connected.)

P+ ----- DC +

P- ----- DC -

VR ----- Speed control (0-5v or PWM)

FG ----- Motor speed pulse signal output port

U ----motor phase U

V ----motor phase V

W ----motor phase W
