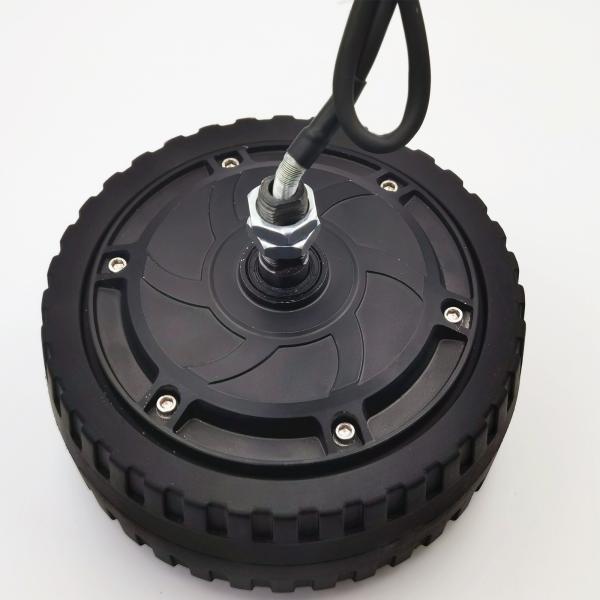

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
Specifications
Brand Name :
Bextreme Shell
Model Number :
ZM2055A03
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Paypal
Rated voltage :
24/36/48VDC
Rated power :
300-600W
Max efficiency :
≥80%
Max torque :
≥20Nm
MAX rotating speed :
customizable
Waterproof Class :
IP54
Description

6.5 inch high torque BLDC servo motor,servo hub motor for AGV with encoder

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder

Motor performance parameter

Item Motor Model ZM2055A03
1 Rated voltage 24-48V
2 Rated power 300-600W
3 Max efficiency ≥80%
4 MAX rotating speed customizable
5 No-load noise ≤60dB
6 Max torque ≥20Nm
7 Number of pole pair 15
8 Encoder accuracy 14
9 Waterproof Class IP54
10 No-load current ≤1A
11 Service temperature -10~55℃
12 Wheel tire anti-static tire

Applications:

1: AGV hub motor

2: Robot hub motor

3: Automatic Walking robot

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder

Our hub servo motor advantage:

  • Self R & D, have own patent and great market competitiveness

  • Built-in high precision encoder 12-21 bits optional, also can be customized, electromagnetic brake, high load carrying etc
  • Simple structure, easy installation and high cost performance
  • High precision, high power density, low noise
  • The motor and the outer tyre are integrated, beautiful design
  • 4-15 inch optional, power: 50-2KW optional, accept OEM/OEM for all models

Outline dimension

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder

24 36 48VDC 6.5 Inch High Torque BLDC Servo Motor With Encoder
