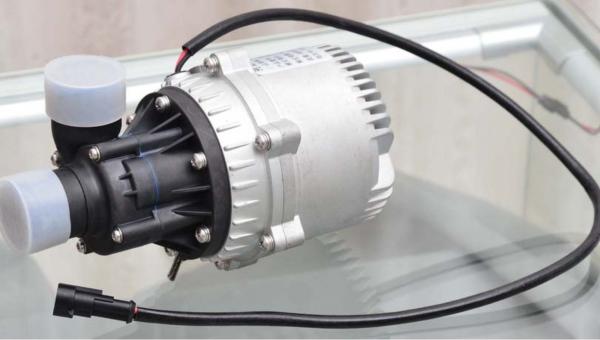

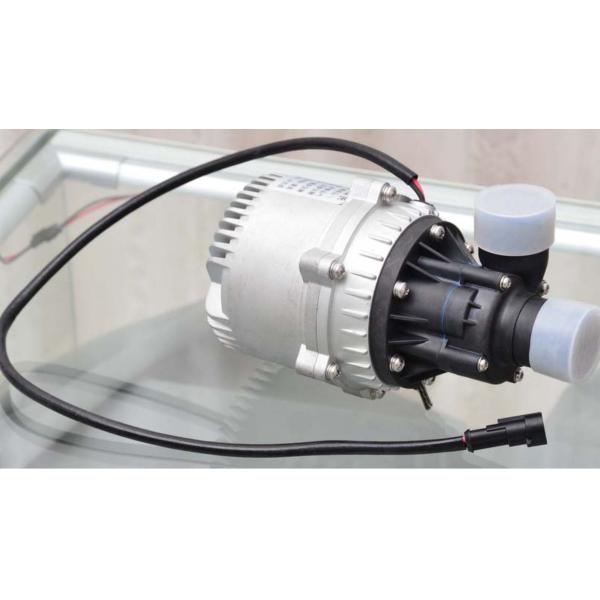

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling
8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling
8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling
8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling
Specifications
Brand Name :
OWO
Model Number :
OWP-702B
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T,L/C
Price :
Negotiable
Operate voltage :
DC 18V-28V
Max Flow: :
8000L/H
Max head: :
9.1M
Rated Flow &lift :
6000L/H,head H ≥4M
Noise :
≤70dB
Ip grade :
IP67
Service life :
≥20000h
Description

210W heavy duty electric water pump for electric bus/van battery and controller cooling system

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Applications:

1: electric vehicles cooling system

2: engine,battery,controller,AC coolant circulation

3: industrial cooling system

No. Items Parameter
1

Medium

temperature range

Max 40% Glycol

-40℃～85℃
2 Flow & Head Flow Q=6000L/H, Head H≥4M
3 Noise ≤70dB
4 Rated Voltage DC24V
5 Operating Voltage DC18～28V
6 Max Current ≤10A
7 Power 210W±10W
8 IP Grade IP67
9 Service life ≥20000h
10 Net Weight 1.7kg

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Advantages of our electric water pump

*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%


*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability


*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.


*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .


*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.


*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.

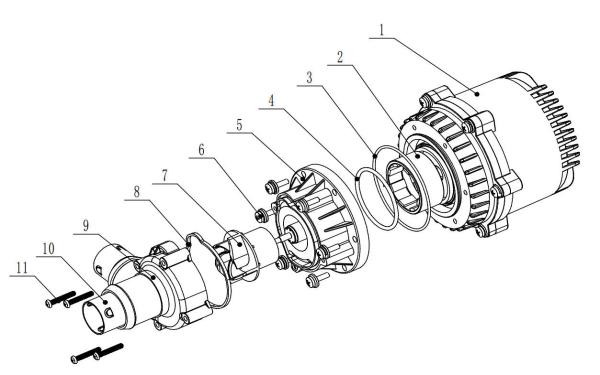

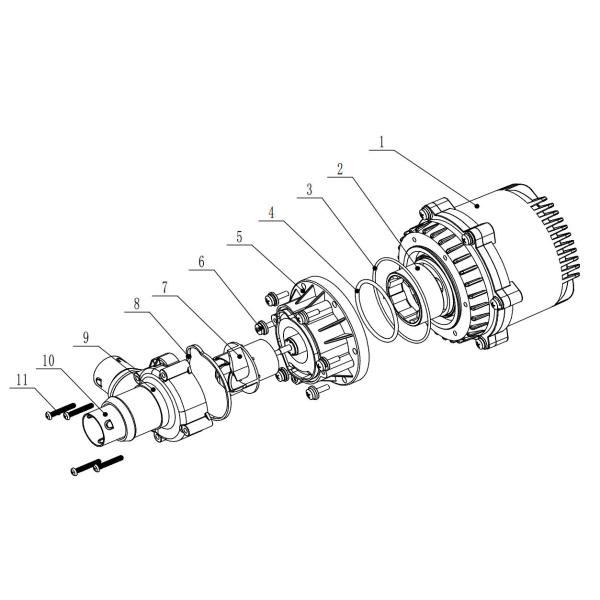

Structure of electric water pump

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Simulation calculation of hydraulic design of electric pump

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Electric water pump design principle

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Electric water pump design verification - electromagnetic theory design verification

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

Design verification of electric pump product design - test verification

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling

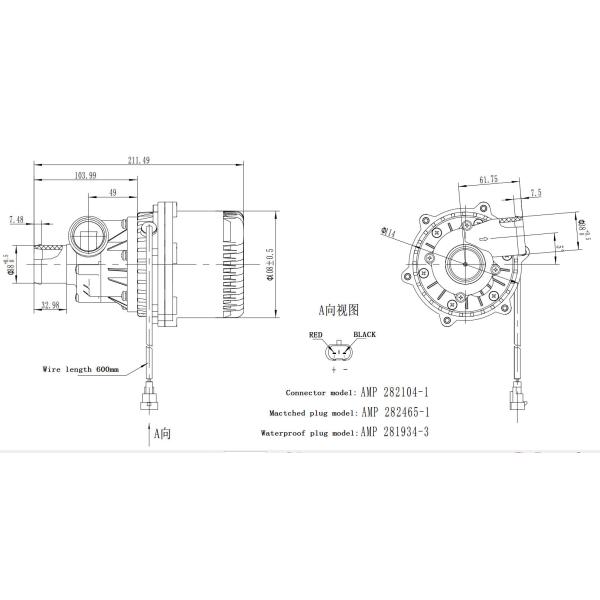

Pump Size:

8000L H Auto Electric Water Circulation Pump For Van Tractor Battery Cooling
