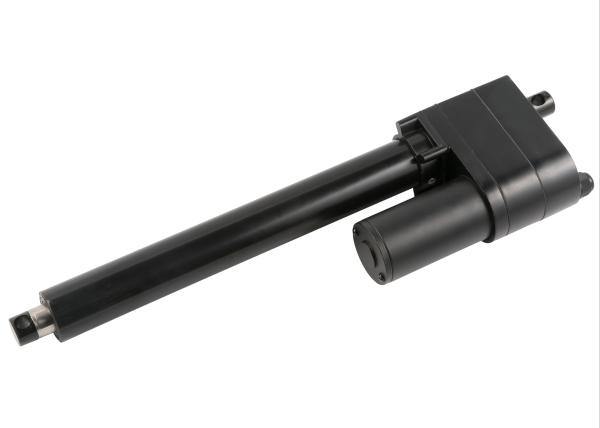

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
Specifications
Brand Name :
Bextreme Shell
Model Number :
OLA-908
Certification :
CE,EMC
Place of Origin :
China
MOQ :
5 sets
Payment Terms :
L/C, T/T
Supply Ability :
500sets/day
Delivery Time :
5-15days
Packaging Details :
standard packing
Price :
Negotiable
Rated Voltage :
12V/24V/36V/48V
Max load :
7000N
Load speed :
4mm/S
Gear ratio :
40:1
IP grade :
IP65
Description

battery powered Linear Actuator motor 5mm/s to 35mm/s 7000N,Electric Putter motor ,Heavy Duty tubular motor

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

1.DC permanent magnet motor, firm structure, durable.

2.Speed from 5 mm/s to 35mm/ s as requested.

3.Maximum Load 7000N.

4.Tempreture Range:-40°- 65°,Duty cycle:20% with full load in normal tempreture

5.Potentiometer Feedback Optional.

6.Build in limit switch.

7.IP Grade:IP65

8.Certificate : CE

9.Overload clutch protection.

10.Widely used in various industry equipment.

special Vehicle and the high load output extremely harsh conditions.

Code Rated load (N)

Speed(mm/S)

±10%

 Current (A) (under normal tempreture)
No load Full load 12V 24V 36V 48V
No load Full load No load Full load No load Full load No load Full load
A 7000 5.5 4 3.0 18 1.5 9 1.0 5 0.8 3.5
B 7000 8.5 7 3.0 18 1.5 9 1.0 5 0.8 3.5
C 5000 11 9.5 3.5 17 2.0 9 1.5 5 1.0 3.5
D 4000 17 14 3.5 17 2.0 9 1.5 5 1.0 3.5
E 3000 22 18 3.5 17 2.5 8 2.0 5 1.0 3.0
F 2000 35 28.5 3.5 17 2.5 8 2.0 5 1.0 3.0

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

Front attachment

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

Rear attachment

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

Dimensions

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier

12/24/36/48VDC Heary load DC linear actuator for tanker/petrol carrier
