Specifications
Brand Name :
Bextreme shell
Model Number :
HUB500-48-155T
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/month
Delivery Time :
5-10days
Packaging Details :
PE bag+carton
Working Voltage :
48VDC
Maximum Force Output :
220Lbs
Maximum Torque :
40N.m
Rated Power :
800W
Speed :
450rpm
Multi-functional :
Yes
Description

Original Bextreme Shell Servo Motor Resistance System For Fitness Equipment & Medical Rehabilitation & Professional Trainer For Sports.

Overview

Servo Motor Resistance System's major parameters
The Servo Motor: HUB500-48-155T
Power Input:48VDC
Rated Power:800W
Max Torque Output :40N.m
Rotate Speed:450rpm
Max curernt: 20A
---------------------------------------------------------------------------
Max Resistance Output: 100Kg(220Lbs)
Shaft Length: 155mm
Diameter of the motor:170mm
Weight:4.8Kg
Encoder:Incremental magnetic encoder
Insulation Rating:Grade F
The Controller: Beedrive-V2.5
Rated Voltage:48VDC
Rated Power:1000W
Max Current :30A
Control Method: FOC
Control Port: UART, USB,RS232,CAN
---------------------------------------------------------------------------
Operating Temp: -10-60℃
Operating Humidity:20%-80%
Speed feedback signal output:Yes
Data Feedback: Speed, position, force, temperature.
Automatic Cooling Control: Yes
Servo Motor Resistance System' Features
1: This advanced resistance system utilizes a precise, high-speed Flux-oriented Control (FOC) servo mechanism to generate accurate, stable, and fluid resistance outputs. Its peak output is 110kg, which can be continuously fine-tuned. The compact design features a lightweight motor weighing just 4.8kg, making it straightforward to integrate into both aerobic and anaerobic workout equipment.
2: Unlike conventional mechanical iron plate loading systems, our system delivers comprehensive performance metrics including the length of pull, exerted force, pull speed, retraction force, training duration, and more. By leveraging these precise and detailed outputs, users can effortlessly capture and analyze data, leading to enhanced understanding of their workout efficacy. This facilitates better management of user data, enabling the creation of more tailored and scientifically grounded training programs and courses.
3: Offering diverse training options, the system supports concentric exercises (where the pull force exceeds the retraction force), eccentric exercises (where the pull force is less than the retraction force), elastic workouts (where the greater the pull distance, the higher the force), vibration exercises (employing motor high-frequency vibrations for post-workout muscle relaxation), and a customizable professional mode that adapts to individual preferences.
4: A distinctive feature is the patented safety centrifugal rope return mode (SSR), which users can enable or disable based on their preference. This innovative safety measure ensures that the return speed of the rope is limited in scenarios involving substantial resistance (over 20kg), thereby safeguarding novice users.
5: The system boasts versatile communication interfaces, including UART, USB, RS232 and CAN ports, catering to the varied needs of different customers. It offers high compatibility with various national protocol formats (like HEX, ASCII), ensuring seamless integration across different systems.
6: Our team, backed by extensive industry expertise, not only supplies robust support for resistance system development but also provides professional guidance on machine creation, helping clients navigate through complexities and swiftly bring fully-fledged products to market.
Servo Motor Resistance System's Applications
In order to pursue the ultimate experience in the fitness process of the end user, the servo controller has undergone 14 software and hardware debugging upgrades, striving to match the servo motor with the best degree and achieve the maximum silky smoothness.
Relying on years of experience in the research and development of brushless DC motor products, after 4 generations of motor design improvement and update, the final manufacture of a large torque servo motor suitable for use in the fitness & medical rehabilitation equipment.

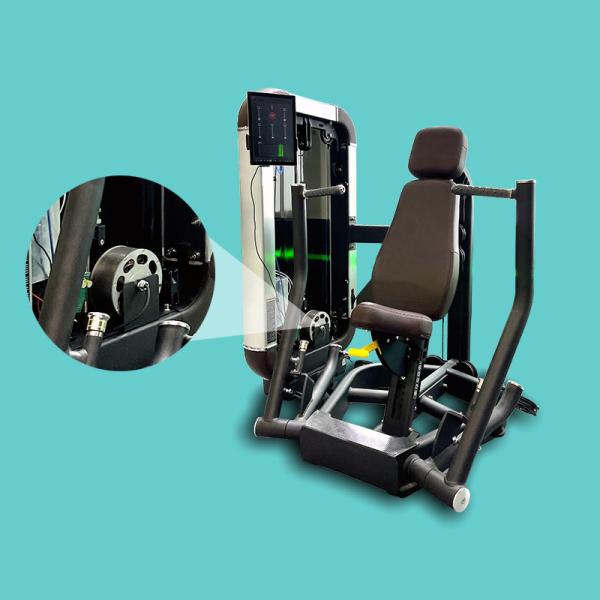

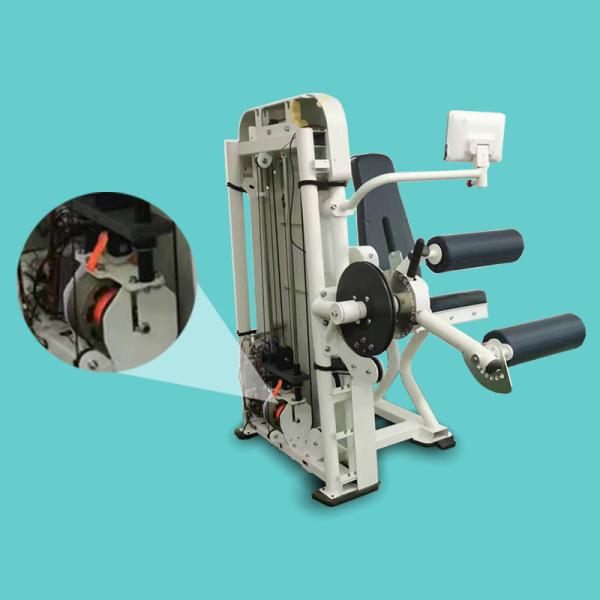

Spin Bike/Rowing Machine/Power Rack/Elliptical Trainer/Bench Press Station/Chest Press Machine/Squat Rack/Leg Press Machine/Leg Curl Machine/Shoulder Press Machine/Lat
Medical rehabilitation equipment
Upper limb strength recovery training
Lower limb strength recovery training.
Sprint Trainer/Running resistance equipment/1080 Sprint Trainer.
Swimming resistance trainer/50m butterfly stroke resistance device.
Fitness equpment for Gym & home Sprint resistance training High precise resistance for medical Industrial equipment

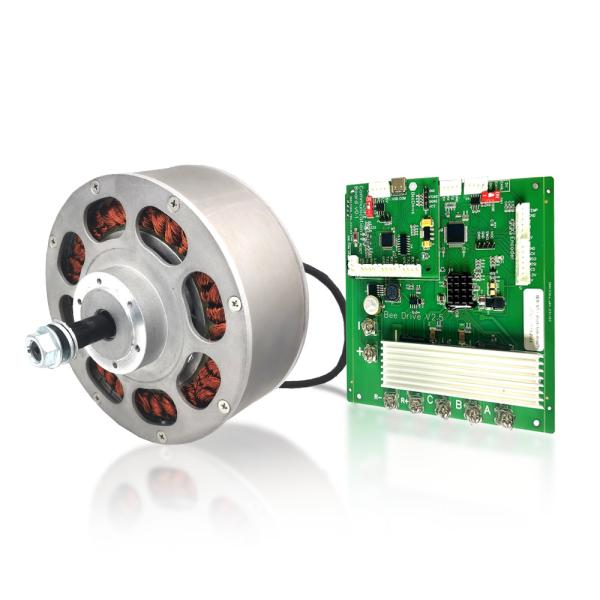

Servo Motor Resistance System's Appearance
Servo Motor Resistance System's Wiring
Control port introductions
Port
Description
Notes
48VDC power input
+:DC positive pole
-: DC positive pole
Input voltage :36-48VDC
According to the circuit board identification to prevent reverse connection. Recommend power cord: SWG17(1.5mm2)-copper,
length:40-60cm,wire end with terminals to prevent poor contact.
Motor 3-phase connector
A: Blue wire
B: Green wire
C: Yellow wire
The motor comes with the wires and matched terminals.
Brake resistor port
R+
R-
No need to distinguish positive or negative poles, resistance:1Ω, power:100W
Encoder
Absolute/Incremental Encoder
The motor defaults to an incremental encoder with a temperature signal output.
Cooling fan port
+48V, PWM, GND
The cooling fan is customized by Bextreme Shell
Port of UART
5V output
Can be connected to Bluetooth, small power display, etc., the max power supply current within 100mA
RS232
GND,TX,RX,GND
connect this port only if the controller is power off
USB communication port
Type-C
Can connect peripheral equipment, mainly used for debugging
Servo Motor Resistance System's Dimensions
Manufacturing Technique
Packing info
The servo motor resistance system well be packed in a carton with foam box.
List of items
Including 1*motor, 1*controller, 1*brake resistor, 1*power supply, 1*cooling fan
*We supply a debugging software for controlling with Windows*
FAQ
1:Whats the Lead time?
Sample:in 5 days
Mass order:in 2-3weeks
2:Whats the MOQ?
1 set for all series products
3:Whats the BLDC motor driver Warranty?
12 month from the date of delivery
4:How is the technical support?
We offer 1-1 service& technical support
