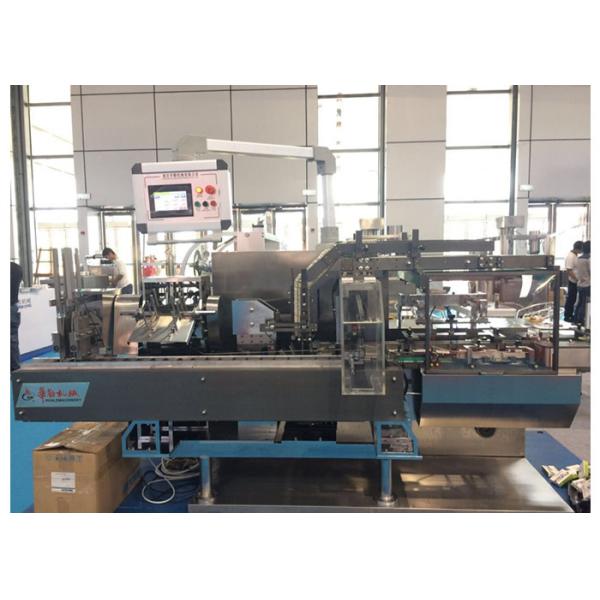

Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Specifications
Brand Name :
HUALE MACHINERY
Model Number :
DXH-200WB
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1Set
Price :
Negotiation
Supply Ability :
10 Set per month
Delivery Time :
50 working days after received your payment.
Packaging Details :
WOODEN BOX.
Product Name :
Blister Cartoning Machine
Output :
Max.200 boxes/min
Box Dimension Range :
(55-200)mm*(20-100)mm*(14-70)mm
Material Consist :
Stainless steel 304
Control :
PLC control
Capacity of air compressor :
≥0.6Mpa
Power Supply :
380V/220V 50HZ 2.2KW
Description

Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min

Description

  • It adopts PLC automatic control and touch screen operating system with speed adjusting by inverter.
  • Detection and Rejection of cartons which gets no object fed or leaflet fed.
  • Servo motor feeding system is apply to feed different styles of blister plate.
  • Main transmission system gets overloading protecting device
  • Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
  • The machine gets stable performance, easy to change different sizes of products

Specifications

Machine Model DXH-200W
Max encasing speed 200box/min
Carton Quality Requirement 250-350g/m2
Dimension Range (L×W×H) (55-120) ×(20-100) ×(14-70)mm
leaflet Quality Requirement 50-70g/m2
Folded Leaflet Specification (80-240)X(90-190)mm
Folding Range 1-4 fold
Air Consumption >0.3m3/min 0.6mpa
Motor Power 2.5kw 380V 50HZ
Machine Dimension (L×W×H) 4300x1440x1600mm
Machine Net Weight About 1500kg

Applications

The machine is suitable for packing different sizes and specifics of blister plate or similar objects with

automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and

cartooning

sealing (hot glue sealing is an optional for the machine). It adopts PLC control with touch screen operation

with all working stations equipped electronic sensor for running status monitoring. The machine can be connect to blister packaging machine as production line.

Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min

Working Steps

Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
Blister feeder & Leaflets feeder Carton feeder
Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
PLC touch screen Finished product output

Packing

The machine will not be shaking in transport with wooden fixed. The machine will not be affected with damp in transport with packed with PE plastic bags.

Easy shaking station will fixed with hard rope.

Long machine will packed separatly.

If there are strict requirements, chassis can use iron girders.

Blister Carton Packaging Machines Fully Automatic cartoning machine with Speed 200 boxes/min
