Stretching Deep Drawing Press Machine For LPG Cylinder Production
Stretching Deep Drawing Press Machine For LPG Cylinder Production
Specifications
Product Name :
His Mouth Machine
Power consumption (approx.) :
110KW
Drive motor power :
90Kw
Return speed :
500 mm/sec
Frame type :
H Frame
Number of Hydraulic Cylinders :
1
Place of Origin :
CHINA
Brand Name :
OEM
Certification :
CE ISO
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Negotiable
Delivery Time :
5-15 DAYS
Payment Terms :
Negotiable
Supply Ability :
Negotiable
Description

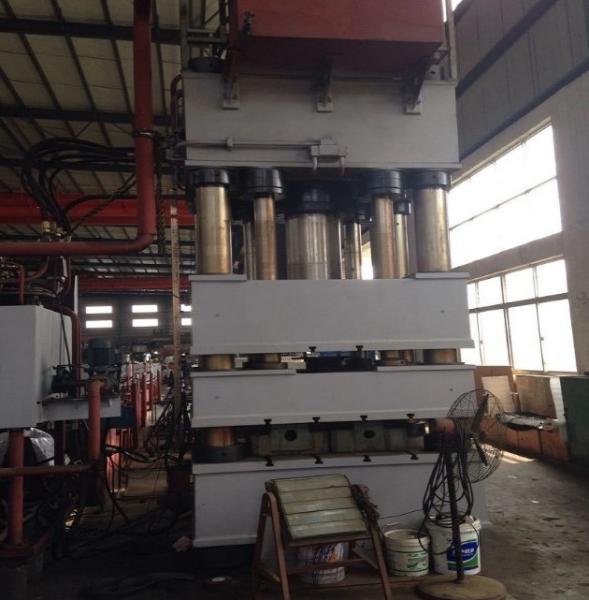

Deep Drawing Press/ Stretching Machine for LPG Cylinder Production

LPG deep drawing press machines are a valuable tool in the manufacturing industry for shaping metal sheets into complex shapes with a high degree of accuracy and precision. With proper maintenance and skilled operation, these machines can help to improve the quality and efficiency of the manufacturing process.

Capacity: LPG deep drawing press machines are available in a range of sizes and capacities to meet the needs of different manufacturing processes. The capacity of the press machine determines the size of the metal sheet that can be deep drawn and the maximum depth of the drawing. It is important to choose a press machine with the right capacity for the specific application.

General Properties of the Deep Drawing Press

The main characteristics of the hydraulic deep drawing press for LPG Cylinder Production:

Frame type:

H Frame

Number of Hydraulic Cylinders

1

Ram Stroke

mm

1.200

Daylight

mm

1.400

Useful bottom table size (L to R) width

mm

1.200

Useful bottom table size (F to B) depth

mm

1.000

General Working Speeds of the Hydraulic Press:

Fast approach speed:

mm/sec

50

Maximum Pressing speed:

mm/sec

50

Return speed

mm/sec

500

Working pressure

bar

265

Drive motor power

kW

90

Power consumption (approx.)

kW

110

Deep Drawing Operation Cycle Time:

Deep Drawing Operation:

8 seconds

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service

FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
