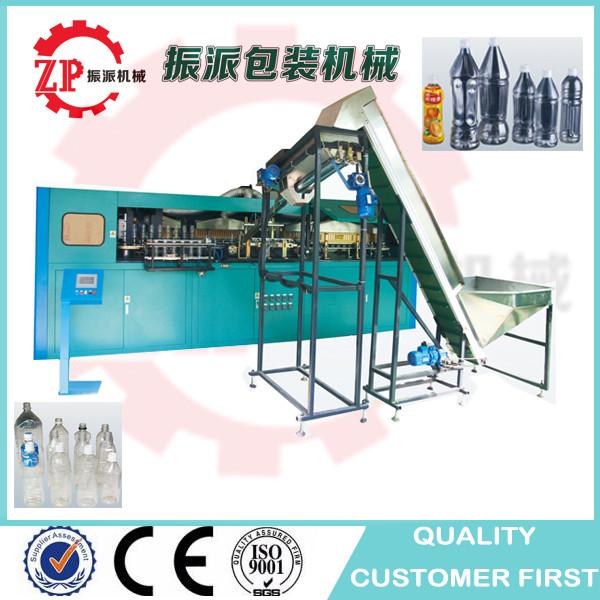

CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
Specifications
Brand Name :
ZP
Model Number :
ZP800-6H ZP800-4H ZP800-2H ZP2000-4H ZP2000-2H ZP2500-2H
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
US$30000-50000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per month
Delivery Time :
30 days after receive deposit
Packaging Details :
Wooden case packing
Name :
CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price
Speed :
2500-3000 2000-2200 1000-13000 2000-2500 1000-1300 1000-1300
Total power :
66 66 34 82 34 42 KW （according to different mode）
Heating power :
26 22 12 36 18 20KW（according to different mode）
Low pressure Air consuming :
2000 Ltr/min
High pressure Air consuming :
4000-10000 Ltr/min
Operating pressure :
3--4Kgf/cm²
Weight :
3-6.5
Description

CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price

CE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low priceCE Automatic pet bottle blow moulding machine for hot filling liquid food industry high quality high speed low price

1. Vibration to send high-end servo machine/general machine series directly upgrade the circulation of hot air filling, filling can be done to achieve the effect of heat-resistant bottle.

2. Mold cavity using oil heating or electric heating, so that the temperature can reach 90 degrees, the single cavity capacity can reach up to 700 bottles/hour.

3. Using high pressure gas recovery system, can be recycled 40%-60% high pressure gas, energy saving and environmental protection.

Model ZP800-6H ZP800-4H ZP800-2H ZP2000-4H ZP2000-2H ZP2500-2H
Mold Clamping force Kg/f 48000 32000 16000 48000 16000 16000
Mold thickness mm 200 190 80 200 190 200
Clamping stroke mm 260 260 260 320 320 320
Bottom stroke mm 50 50 50 50 50 50
Cavity pitch mm 76.2 76.2 76.2 114.3 114.3 130
Number of cavities cavities 6 4 2 4 2 2
Bottle Max container volume ltr 0.6 0.6 0.6 2 2 2
Max neck diameter mm 38 38 38 38 38 38
Max container diameter mm 68 68 68 105 105 120
Max container height mm 260 260 260 320 320 320
Carriage Unit pcs 108 76 48 72 48 64
Theortical output Pcs/hr 2500-3000 2000-2200 1000-13000 2000-2500 1000-1300 1000-1300
Electric Perature increasement part Group 4 4 2 4 2 2
Levels of infrared lamps Number of levels 8 8 8 10 10 10
Total power kw 66 66 34 82 34 42
Heating power kw 26 22 12 36 18 20
Air Operating pressure Kgf/cm² 8 8 8 8 8 8
Low pressure Air consuming Ltr/min 2000 2000 2000 2000 2000 2000
Blowing pressure Kgf/cm² 35 35 35 35 35 35
High pressure Air consuming Ltr/min 10000 8000 4000 8000 4000 4000
Freezing device Operating pressure Kgf/cm² 3--4 3--4 3--4 3--4 3--4 3--4
Temperature ℃ 130-150 130-150 130-150 130-150 130-150 130-150
Consuming Kcal/hr 10800 10800 5400 10800 5400 10800
Flow rate Ltr/min 160 160 60 160 60 160
Cooling device Operating pressure Kgf/cm² 5--6 5--6 5--6 5--6 5--6 5--6
Temperature ℃ 25 25 25 25 25 25
Consuming Kcal/hr 45000 45000 30000 45000 30000 30000
Flow rate Ltr/min 150 150 100 150 100 100
Machine Size Mm 4000*1920*1930 3660*1840*1930 2250*1800*2100 4050*1820*2100 3000*1800*1900 3260*2160*1900
Weight T 6.5 4.5 3 5.5 3 3.5
