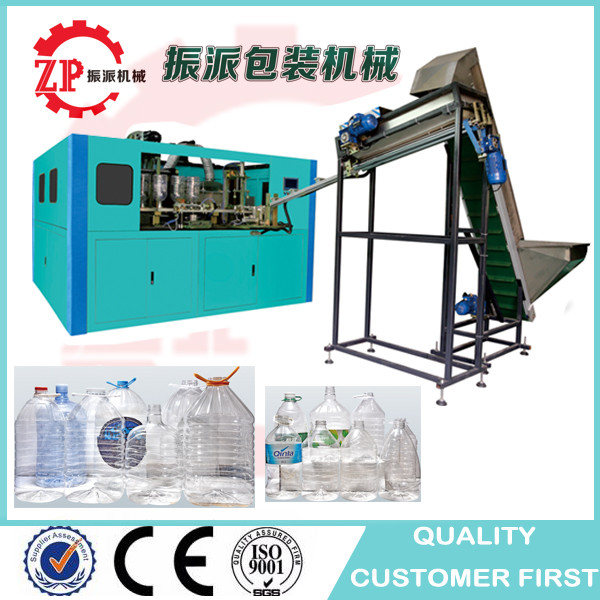

Automatic oil mineral water big pet bottle blowing machine factory from China
Automatic oil mineral water big pet bottle blowing machine factory from China
Automatic oil mineral water big pet bottle blowing machine factory from China
Automatic oil mineral water big pet bottle blowing machine factory from China
Automatic oil mineral water big pet bottle blowing machine factory from China
Automatic oil mineral water big pet bottle blowing machine factory from China
Specifications
Brand Name :
ZP
Model Number :
ZP-600
Certification :
CE;ISO9001
Place of Origin :
GUANGDONG CHINA
MOQ :
1set
Price :
USD10,000-60,000
Supply Ability :
100 SETS per month
Delivery Time :
30 days
Packaging Details :
wooden case packing
Name :
Automatic oil mineral water big pet bottle blowing machine factory from China
Usage :
wide mouth pet bottle jars
Operating pressure :
8mpa
Voltage :
380V/220V
Power :
88kw
Weight :
5.5-7.5T
Description

Automatic oil mineral water big pet bottle blowing machine factory from China

1. Block type structure, make full use of the slider to drive a rectangular bottle embryo operation changes, the bottle in the heating box with sufficient space, save energy, can produce the edible oil bottle series.

2. Send for 5L bottle/mechanical vibration lecythus developed a series of rotary heating automatic bottle blowing machine and straight line type bottle blowing integrates the advantages of variable pitch dispersion blowing, 35% energy saving, reduce costs and enhance market competitiveness.

3. ZP20LE-2 is a professional full automatic straight line type large capacity bottle blowing machine, mechanical vibration with patent sent independent heating system and the servo positioning system with variable pitch the UK NORGREN high voltage combined double blow valve and air improve the capacity of the unit, compared to similar models of 30% energy saving, wide application of edible oil, 5 gallons bucket PET large container.

4. Combined with high pressure gas recovery system, 20%-40% high pressure gas can be recovered to achieve energy saving and environmental protection.

Model ZPW2000-4 ZPW2000-2 ZPW2500-2 ZPW5000-2 ZPW10L-1
Mold Clamping force Kg/f 48000 16000 16000 30000 30000
Mold thickness mm 200 190 200 260 260
Clamping stroke mm 260 260 320 320 320
Bottom stroke mm 50 50 50 50 50
Cavity pitch mm 114.3 114.3 130 196 196
Number of cavities cavities 4 2 2 2 1
Bottle Max container volume ltr 2 2 2.5 5 10
Max neck diameter mm 90 90 100 140 140
Max container diameter mm 105 105 120 190 190
Max container height mm 320 320 320 320 320
Carriage Unit pcs 80 50 64 40 42
Theortical output Pcs/hr 3000-4000 1800-2000 1300-1500 800-1000 400-600
Electric Perature increasement part Group 3 2 2 2 2
Levels of infrared lamps Number of levels 8 8 8 10 10
Total power kw 48 34 34 42 42
Heating power kw 20 16 20 20 20
Air Operating pressure Kgf/cm² 8 8 8 8 8
Low pressure Air consuming Ltr/min 2000 2000 2000 2000 2000
Blowing pressure Kgf/cm² 35 35 35 35 35
High pressure Air consuming Ltr/min 6000 2000 4000 4000 4000
Freezing device Operating pressure Kgf/cm² 2--4 2--4 2--4 2--4 2--4
Temperature ℃ 10--12 10--12 10--12 10--12 10--12
Consuming Kcal/hr 11400 5400 5400 5400 5400
Flow rate Ltr/min 68 30 30 30 30
Cooling device Operating pressure Kgf/cm² 5--6 5--6 5--6 5--6 5--6
Temperature ℃ 25 25 25 25 25
Consuming Kcal/hr 45000 30000 30000 30000 30000
Flow rate Ltr/min 150 100 100 100 100
Machine Size mm 4460*2000*2200 2950*1800*2100 2700*1900*1900 3300*2000*1900 3560*2060*2000
Weight T 5.5 3 3.5 4.5 4.5

Automatic oil mineral water big pet bottle blowing machine factory from China
