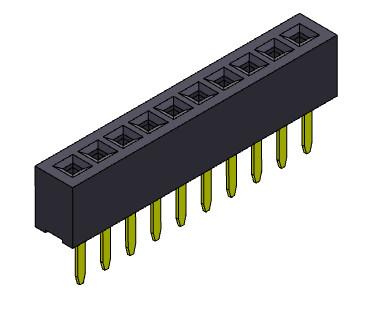

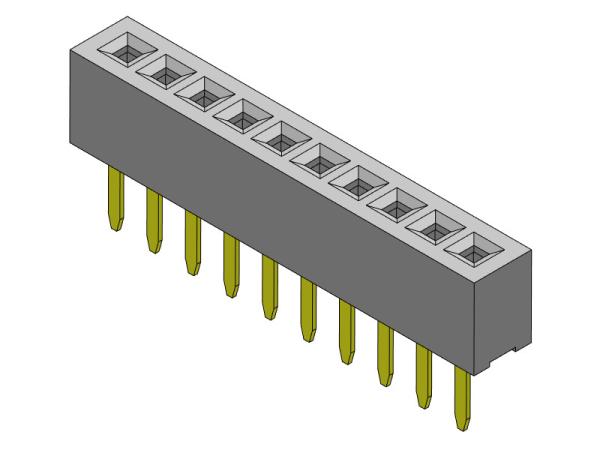

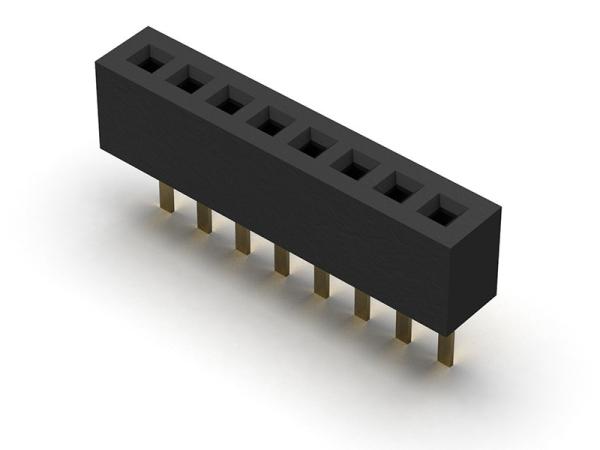

Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm
Specifications
Brand Name :
Soyoung
Model Number :
SYFCA116-XXXXA01
Certification :
SGS ,REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
It depends on the customers' requests and can be negotiable.
Payment Terms :
T/T
Supply Ability :
500K/Month
Delivery Time :
10-14works
Packaging Details :
Tube Packing
Current Rating :
0.5 AMP
Insulation Resistance :
500MΩMin
Dielectric Withstanding Voltage :
200V AC
Product Family :
Board to Board Connector
Number of Rows :
Single
PCB Mount type :
Through hole
Description

Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm

What's the Female Header

Female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.

Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

Female Header Connector 1.00mm Single Row Straight Type 1*2PIN To 1*40PIN H=2.10mm

SYFCA116-XXXXA01.pdf

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing

4. Reel Packing with Cap, suitable for automatic machine producing

How to Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method

Product tags

4 pin header connector

,

6 pin header connector

,

8 pin header connector
