Customized Hydraulic Boat Control System Parts Of Ship Steering Wheel

Hydraulic Outboat Marine Steering Wheel Steering Gear System for 90hp-300hp

This kind can be divided into 3 types:

MHS90----can be used for 90hp outboard engine

MHS150--can be used for 90-150hp outboard engine

MHS300--can be used for 150-300hp outboard engine

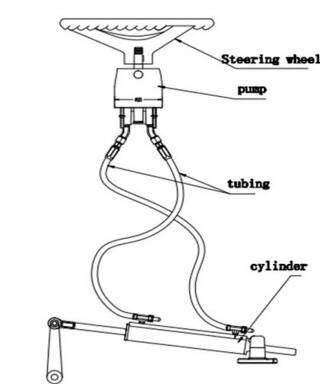

The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type (such as HD-S type) or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.

This kind can be divided into 3 types:

MHS90----can be used for 90hp outboard engine

MHS150--can be used for 90-150hp outboard engine

MHS300--can be used for 150-300hp outboard engine

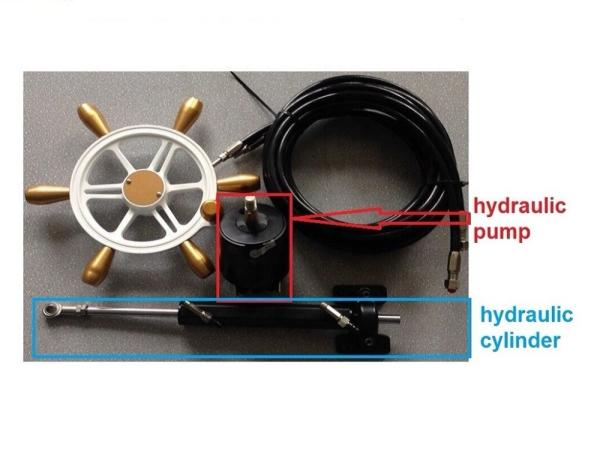

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Quality warranty: 12 months

The steering gear is characterized by: pushing the rudder mechanism adopts swing cylinder piston, simple compact structure, light weight, easy installation process, valve assembly, integration and a high degree of hydraulic components are domestic famous brand, reliable quality, replacement convenient, hydraulic system uses the open system, the hydraulic system simplified.

In addition, the possible failure of the site, located a sound and light alarm devices, thereby improving steering vitality.

Hydraulic Steering gear system(90HP/150HP/300HP)
* Compact design
* Front Mounting
* Ball bearing piston race, 7 pistions
* In built lock valve (70bar) for positive rudder lock
* 3/4'' tapered stainless steel shaft for strength and durability
* Cast iron cylinder rotor for greater durability and longer life
* 1/4'' NPT fitting for 3/8'' tube
* Wheel size within 500mm is available for this model

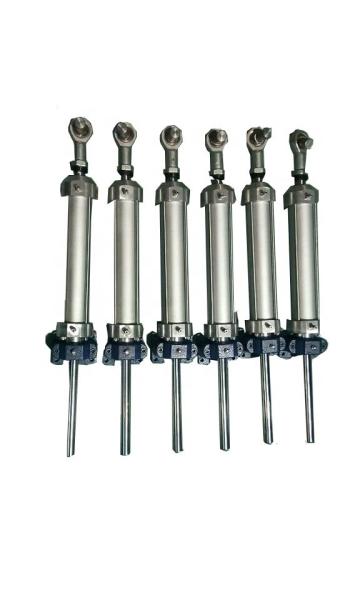

Cylinder Specification
* Volume: 137cc / 8.4cu.in
* Output force: 470kg / 1036lbs
* Inside diameter: 35mm / 1-3/8''
* Bore shaft length: 550mm / 21.6''
