150HP Hydraulic Outboard Steering System Kit Marine Cylinder Helm

This kind can be divided into 3 types:

MHS90----can be used for 90hp outboard engine

MHS150--can be used for 90-150hp outboard engine

MHS300--can be used for 150-300hp outboard engine

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Quality warranty: 12 months

The steering gear is characterized by: pushing the rudder mechanism adopts swing cylinder piston, simple compact structure, light weight, easy installation process, valve assembly, integration and a high degree of hydraulic components are domestic famous brand, reliable quality, replacement convenient, hydraulic system uses the open system, the hydraulic system simplified.

In addition, the possible failure of the site, located a sound and light alarm devices, thereby improving steering vitality.

Features:

Super low-friction helm for smooth comfortable steering

Balanced cylinder, featuring a compact design that fits most splashwells

5.3 turns lock-to-lock

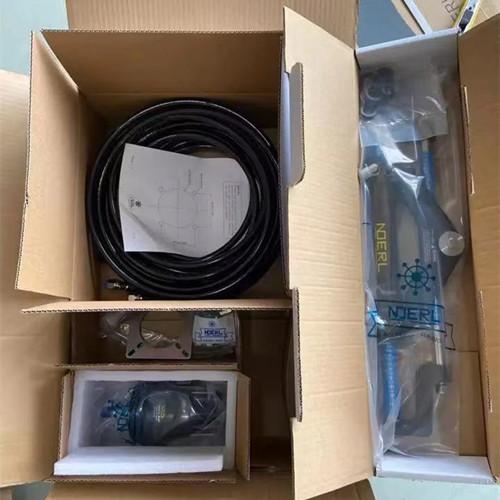

Comes complete with everything needed for an install

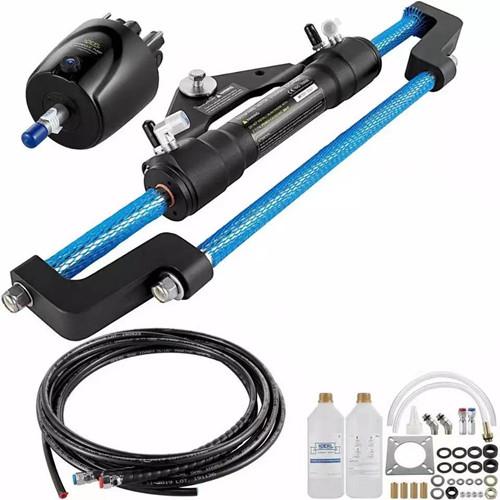

Includes:

Helm Pump

Cylinder

Tubing Kit

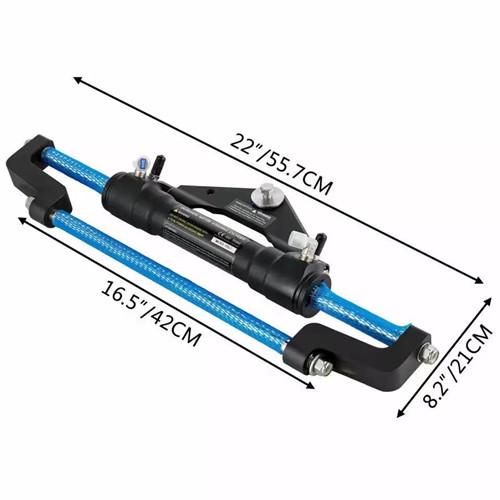

Specification

CAPACITY CM3: 27

No. of PISTONS: 7

MAX PRESSION BARS: 68

TURNS OF WHEEL: 5.3

TUBE I.D mm: 35

ROD I.D mm: 18

OUTPUT FORCE/KGF: 470

STROKE mm: 214

VOLUME cc: 141

APPLICATION: UP TO 300Hp

Gold shark is a company operating in the nautical sector with long time growing success. The company was established in 1996 and started producing nautical accessories and mechanical steering systems for the most important boatbuilders of the American and European market. In these last 22 years Gold shark specialized in production and development of hydraulic steering systems for leisure and working boats, realizing a complete range of innovative products, among them the evolution hydraulic steering system, with a worldwide ricognized quality.

Main products: Mechanical Steering System, Hydraulic Steering System,Edge Control Cable, Outboard Fittings, Remote Spotlights&Floodlights, Navigation Light, Cabin Lights, Master Switch, Plastic Parts For Yacht, Rubber Parts Of Yacht, Stainless Steel Outfitting, Electronic Equipment, Instrument Pump, Stainless Steel Porthole, Aluminum Alloy Board Skylight.
