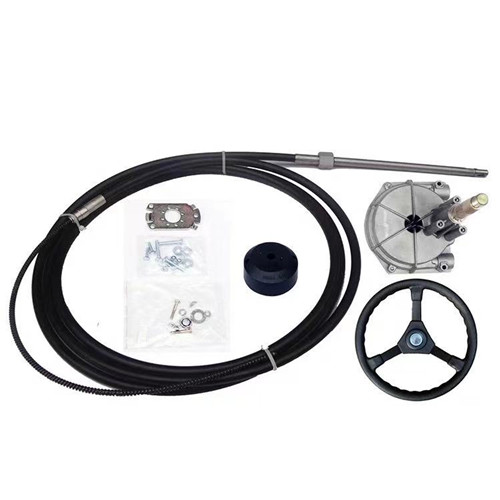

STEERING HELM :

The Steering Helm is a gearbox arrangement mounted on the dashboard of the boat.On the shaft of the helm is mounted the Steering Wheel.

Applications:

Suit for max. 30 Feet(9 meters) out board boat(up to 200hp)

Max load 300 pounds at tiller.

Planetary Gear design:3 turns lock to lock

Max steering wheel dia 406mm (16")

Minimal feedback

Shaft Length: 125mm

Material:Chromed plated Zinc Alloy

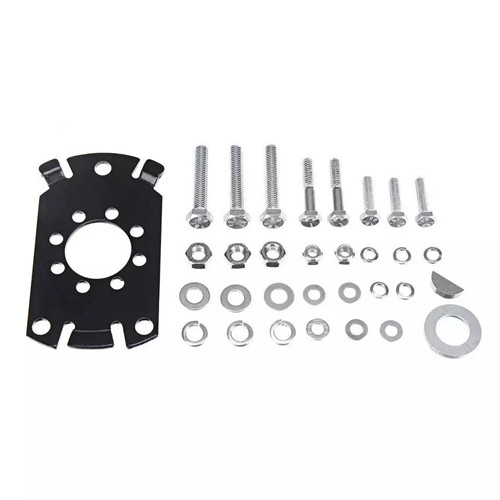

BEZEL KITS

Bezel kit is a plastic part along with related hardware which is mounted between the steering wheel and dash board to cover the helm hardware.

Features:

Bezel made from Engineering Plastic

Black color available as standard options

90 degree tilt

Contains mounting hardware

STEERING CABLE

The Steering Cable is a push pull mechanical cable which convents the rotary motion of the helm to linear motion at the engine/rudder.One end of the cable is connected to the helm & the end to the rudder.The latest construction technology, the internal control line used elastic material.Output used 304 stainless steel seamless pipe and corrosion-resistant materials, control lines has longer life.

5-30 feet length control line can be used, and to increase per 1-foot increments.

Features:

Output ends made of 316 Stainless Steel

Maximum Trave:9inch(225mm)

Minimum bend radius:8 inch (200mm)

Maximum working load at Tiller end:5000N

Cable Outer Diameter:16.5mm

Spiral inner cable Diameter:8mm

Gold shark is a company operating in the nautical sector with long time growing success. The company was established in 1996 and started producing nautical accessories and mechanical steering systems for the most important boatbuilders of the American and European market. In these last 22 years Gold shark specialized in production and development of hydraulic steering systems for leisure and working boats, realizing a complete range of innovative products, among them the evolution hydraulic steering system, with a worldwide ricognized quality.

Main products: Mechanical Steering System, Hydraulic Steering System,Edge Control Cable, Outboard Fittings, Remote Spotlights&Floodlights, Navigation Light, Cabin Lights, Master Switch, Plastic Parts For Yacht, Rubber Parts Of Yacht, Stainless Steel Outfitting, Electronic Equipment, Instrument Pump, Stainless Steel Porthole, Aluminum Alloy Board Skylight.
