24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
24V 400W Stainless Steel Windlass Anchor Winch Vertical electric
Specifications
Brand Name :
Light
Model Number :
12V/24V 400W
Certification :
CE ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
800 usd/pcs
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs every week
Delivery Time :
5 to 8 days
Packaging Details :
Standard exporting package
Application :
BOAT
Power Source :
Electric
Capacity :
150kgs
Power :
1600W
Max. Load :
660kg
Power supply :
12V/24V
Material :
Stainelss Steel
Description

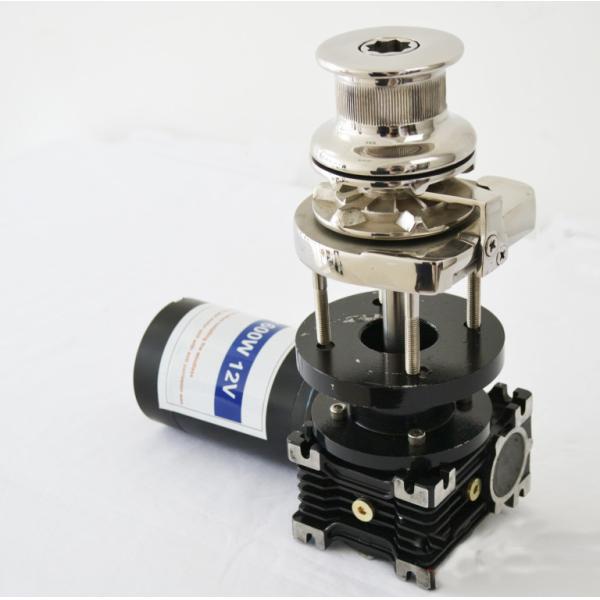

Stainless Steel Boat Anchor Windlass Anchor Winch 12V/24V 400W

Model LP411 LP412 LP413 LP414 LP415 LP416 LP417 LP418
Power supply(v) 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V
Net weight(kg) 7kg 7.5kg 8kg 9 kg 12kg 14 kg 16 kg 18 kg
Motor(watts) 400W 400W 600W 600W 800W 800W 1200W 1200W
No load absorption (A) 30A 30A 60A 60A 100A 100A 120A 120A
Max.Load (kg) 125kg 130kg 186kg 210kg 250kg 280kg 400 kg 400 kg
Max. Pull (kg 420kg 450kg 560 kg 600kg 700 kg 700 kg 1200 kg 1200 kg

Ling speed

(ft/minute)

 30m/min 30m/min 25m/min 25m/min 20m/min 20m/min 20m/min 20m/min
Rope size (mm) 12mm 12mm 12mm 12mm 12-14mm 12-14mm 14-16mm 14-16mm
Chain size (mm) 6-7mm 6-7mm 6-7mm 6-7mm 8-10 mm 8-10 mm 8-10 mm 8-10 mm
Boat (m) 5-8m 5-8m 7-16m 7-16m 14-20m 14-20m 19-26m 19-26m


24V 400W Stainless Steel Windlass Anchor Winch Vertical electric

1.Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.

2.High-quality polished 316 stainless steel surface makes for a beautiful appearance.

3.Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.

4.Functional. JB-metal can control all ropes flexibly.

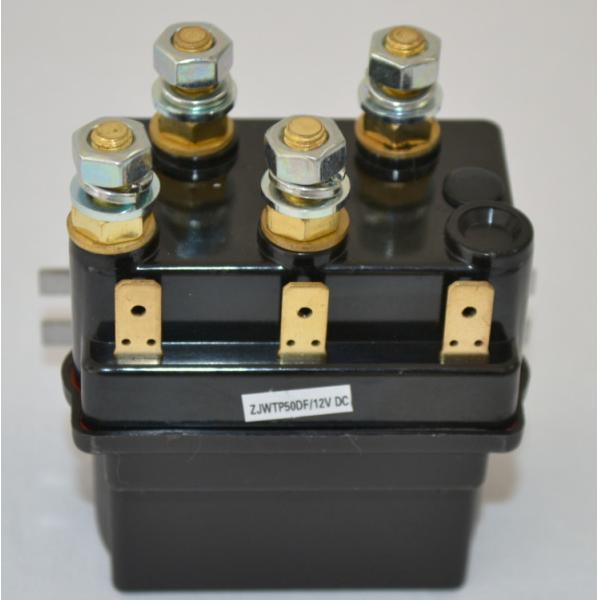

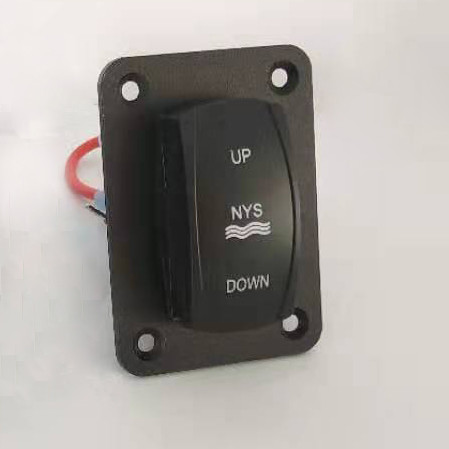

5.Each windlass have the solenoid,hand-switch and foot-switch.

24V 400W Stainless Steel Windlass Anchor Winch Vertical electric

Q1: Why we choose you?

11 professional engineers can provide overall solution services.

13 years specialising in marine deck equipment .

18 long-term cooperation supporting factories.

24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

We could finish the production within 30 days

Q4: What's the MOQ?

MOQ is 1 set.

24V 400W Stainless Steel Windlass Anchor Winch Vertical electric

Service Commitment


Product Quality

All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.


Spare Part Replacement

First mold for free,more than 50% discount if more order.


Technical Service

We can provide design, installation and debugging services or remote maintanance teaching.


Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.

Detail Product Information

Provide picture,video,instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours
