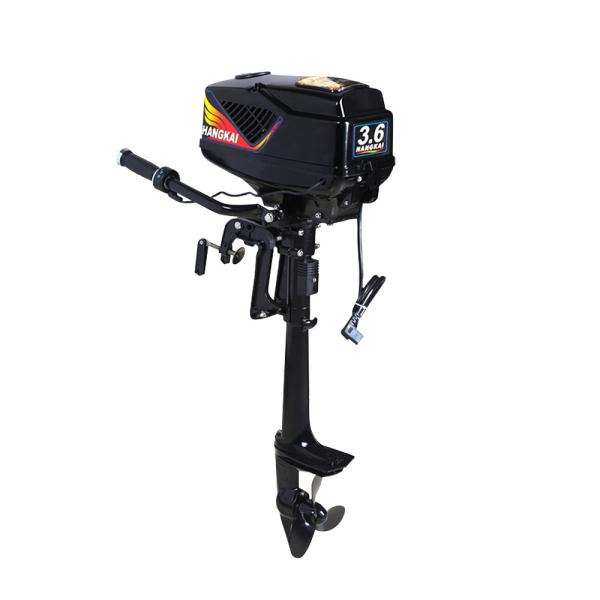

48V 60V 3.6HP 5.0HP 8.0HP 10HP Electric Outboard Motor Boat Engine For Yacht

Mode : 48V 3.6HP

• Rated power: 800W
• Staring system:Accelerated start
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 18
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Maximum speed(KM/H) : 13
• Overall LxWxH(mm): 365x220x920
• Weight:11KG
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):420
• Battery recommendation:Selection of 30-120A safe storage battery maxium power sustainable 2-8 hours

Mode : 48V 5.0HP

• Rated power: 1200W
• Staring system:Accelerated start
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 25
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Maximum speed(KM/H) : 18
• Overall LxWxH(mm): 365x220x920
• Weight:12KG
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):420
• Battery recommendation:Selection of 30-120A safe storage battery maxium power sustainable 2-8 hours

Mode : 48V 8.0HP

• Rated power: 2200W
• Staring system:Switch knob added
• Motor : Brushless motor
• Rated voltage(V) : 48
• Rated speed(r/min) : 3000
• Rated current (A) : 50
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Manipulation mode: Back
• Rod length(mm) : 910mm
• Weight:14KG
• Total height(mm):1320mm
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):381-508
• Battery recommendation:Selection battery with a capacity of over 120AH

Mode : 60V 10HP

• Rated power: 2200W
• Staring system:Switch knob added
• Motor : Brushless motor
• Rated voltage(V) : 60
• Rated speed(r/min) : 3000
• Rated current (A) : 38
• Gear ratio: 2.08(27:13)
• Control system: Tiller control
• Manipulation mode: Back
• Rod length(mm) : 910mm
• Weight:14KG
• Total height(mm):1320mm
• Recommended propeller range: 7-1/4x5
• Transom plate height(mm):381-508
• Battery recommendation:Selection battery with a capacity of over 120AH

Qingdao gold shark grows up quickly and powerfully. We have our own design team, manufacture team including the workshop, marketing and sales department. We mainly focus on second innovation research and development basing on the latest international electronic intelligence technology, manufactures and sells electronic intelligent control products and peripheral accessories.

The vision of gold shark is to maximize the use of latest international technology and to change life by it. gold shark 's products can be applied in electric skateboards, electric vehicles, scooters, car models, ship models, robots and industrial equipment and other industries.
