Specifications
Brand Name :
BOCHEN
Model Number :
3590
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
100 Pieces
Price :
$0.90 - $2.50/Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
3,000,000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
one set per bag
Product Name :
3590 Waterproof Series Wirewound Potentiometer
Product Type :
Precision Potentiometer
Element Type :
Wirewound
Termination Style :
Solder Lug
Mounting Style :
Panel Mount
Range Of Nominal Resistance :
100Ω-100KΩ
Resistance Tolerance :
±5%
Independent Linearity :
±0.25%
Effective Travel :
≥3600°-10°
Terminal Resistance :
≤0.2%R or 5Ω
Description

Waterproof 10k Multi Turn Pot Wirewound 3590 Precision Potentiometer For Mining Equipments

Description:

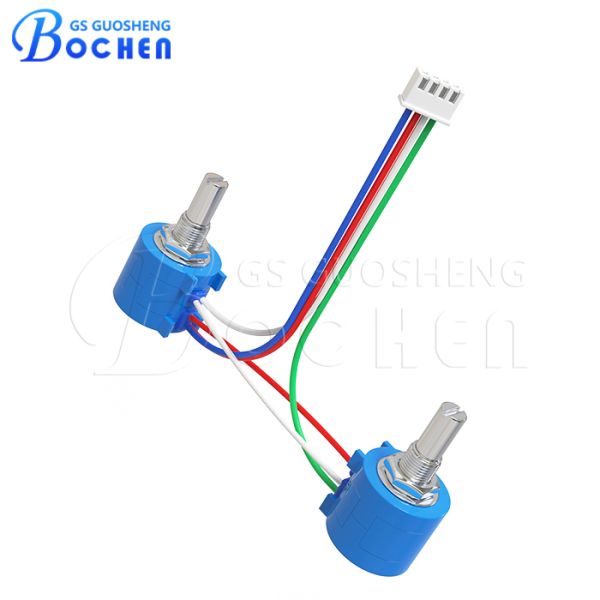

The 3590 Waterproof Wirewound Potentiometer set includes two potentiometers along with a plug-and-play waterproof cable. These potentiometers are designed to be used together, allowing for versatile adjustments to meet varying needs across different conditions. They are particularly suitable for applications requiring precise control and reliable performance.

Featuring a high level of waterproofing, the potentiometers are engineered to withstand challenging environments, ensuring durability and functionality in harsh conditions. This makes them ideal for use in demanding settings such as mining equipment and other industrial applications. The 3590 Waterproof Wirewound Potentiometer set is tailored to deliver accuracy and resilience, making it a dependable choice for critical control systems operating in rugged environments.

Specification:

Electrical Characteristics Nominal Resistance Range 100Ω～100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.25%
Effective Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000 cycles, R≤±1%R
Collision

10-500Hz, 0.75mm, or 98m/s2 ,

6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Mechanical Endurance 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m

Dimension:

Waterproof 10k Multi Turn Pot Wirewound 3590 Precision Potentiometer For Mining Equipments

Packaging:

Packaging specification: one set per bag.

Applications:


• Mining Equipments

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
