Specifications
Brand Name :
BOCHEN
Model Number :
3362 Series
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
100 Pieces
Price :
$0.98 - $1.80/Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
3,000,000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
Standard Packing 50 Pieces/Tube
Product Name :
3362 Series cermet trimmer potnentiometer
Resistive Material :
Cermet
Adjustment Method :
Top and Side Adjustment
Terminal Style :
PC Pins
Mounting Style :
Through Hole
Resistance Range :
10Ω-5MΩ
Resistance Tolerance :
10%
Rated Power(300 volts max.) :
70℃，0.5W；125℃，0W
Electrical Travel :
220°
Total Mechanical Travel :
250°
Description

3362 Series 0.5w 10Ω To 5MΩ 1/4˝ Square Through Hole Single Turn Cermet Trimmer Potentiometer

Highlights

• Cermet resistive element.

• 1/4" square,single turn,fully sealed,miniature package.

• Side and top adjustment.

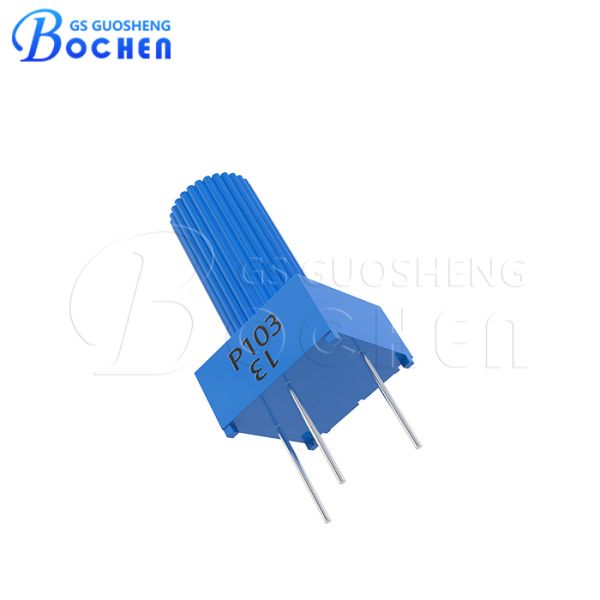

• Available with a 5mm or 10mm knob for finger adjust.

• Available with a extended shaft.

• Thirteen terminal styles.

• Through hole mounting.

• Wide resistance range 10Ω to 5MΩ.

• Power rating 0.5w at 70℃.

• Electrical travel 220°,total mechanical travel 250°.

• Rotor designed for automatic machine adjust interface.

• Withstands harsh environments and immersion cleaning processes.

• RoHS compliant available.

Description

The 3362 Series Cermet Trimmer, a versatile solution designed to meet your precise adjustment needs with unparalleled reliability and performance. Featuring a cermet resistive element, this trimmer ensures exceptional stability and longevity for consistent performance over time. Encased in a 1/4" square, fully sealed, miniature package, it offers compactness without compromising functionality. With side and top adjustment options, tailored to your convenience, and available in thirteen terminal styles, customization is effortless. Choose between a 5mm or 10mm knob for finger adjustability, with the option for an extended shaft for added versatility. Engineered for seamless integration, this trimmer supports through-hole mounting, ensuring secure placement in your circuitry. With a wide resistance range spanning from 10Ω to 5MΩ and a power rating of 0.5w at 70℃, it accommodates diverse requirements with precision and reliability. Experience effortless fine-tuning with an electrical travel of 220° and a total mechanical travel of 250°. The rotor is meticulously designed for automatic machine adjust interface, enhancing efficiency and productivity. Built to withstand harsh environments and immersion cleaning processes, this trimmer guarantees durability without compromising performance. Plus, it's RoHS compliant for added peace of mind. Elevate your electrical adjustments with the 3362 Series Cermet Trimmer, where precision meets reliability for unparalleled performance.

Specification

Electrical Characteristics Nominal Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%; ±20%
Terminal Resistance ≤±1%R or 3Ω
Contact Resistance Variation (CRV) ≤3%R or 3Ω
Insulation Resistance 500 Vdc. 100 megohms min.
Withstand Voltage 101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength 500 Vac(1 Min.)
Electrical Travel 220°
Environment Characteristics Resistance to Solder Heat 250℃ for 10 Secs.
Rated Power(300 volts max.) 70℃,0.5W；125℃,0W
Operating Temperature Range -55°C ~ + 125°C
Temperature Coefficient ±250,±100 ppm /°C
Temperature Variation ΔR≤±3%R, Δ(Uab/Uac)≤±1%
Collision 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
Vibration 100G, ΔR≤±1%R,Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C 1000 hours @ 70℃ Rated Power; ΔR≤±3%R
Rotational Life 200 Cycles,ΔR≤±3%R
Physical Characteristics Total Mechanical Travel 250°
Starting Torque ≤25 mN.m
Clutch Torque ≤35 mN.m

Dimension

Twelve terminal styles:

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Packaging

Packaging specification:50 pieces per tube.

Square Through Hole Single Turn Cermet Trimmer Precision Potentiometer 3362 0.5w 10Ω To 5MΩ 1/4˝

Application

• Calibration of Electronic Devices

• Industrial Control

• Medical Devices

• Communication Equipment

• Consumer Electronics

• Aerospace

• Automotive Electronics

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
