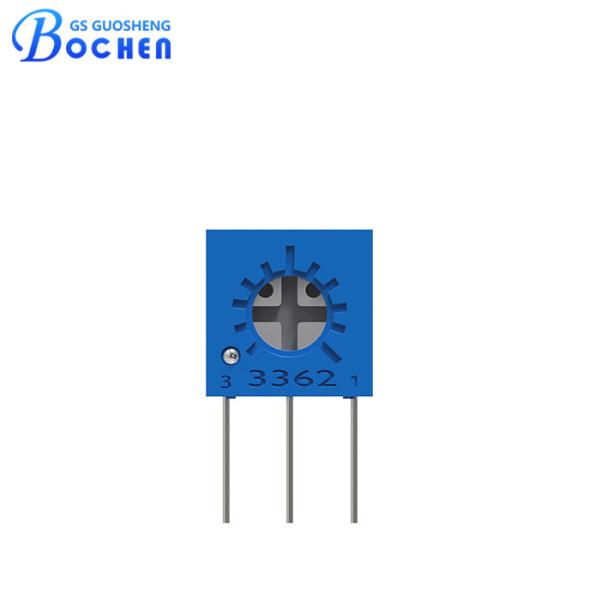

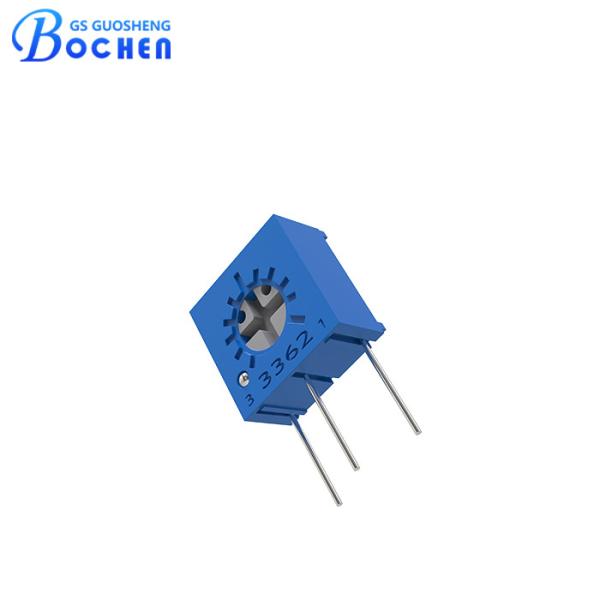

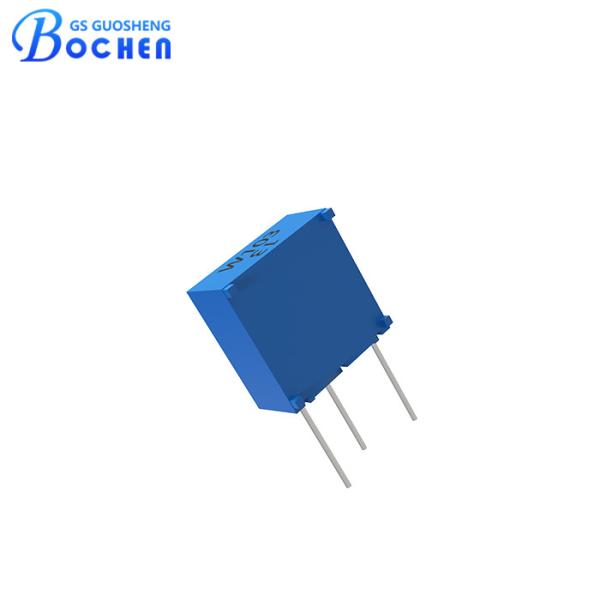

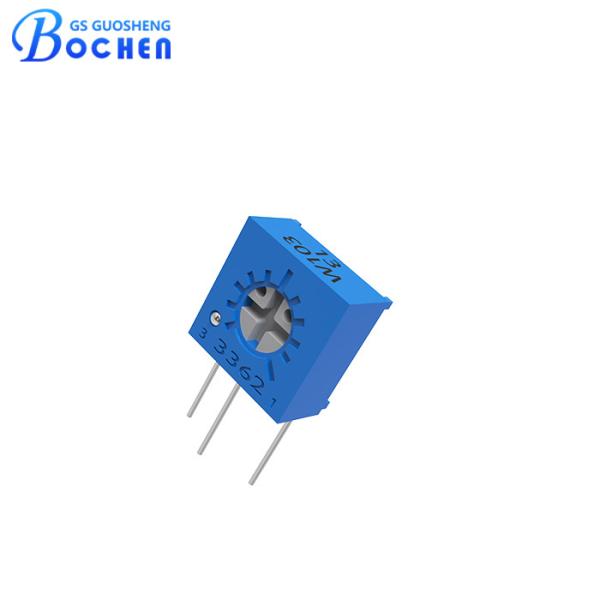

501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor
Specifications
Brand Name :
BOCHEN
Model Number :
3362W
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
100 Pieces
Price :
$0.98 - $1.80/Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
10000000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
Standard Packing 50 Pieces/Tube
Product Name :
3362W 102 103 105 501 503 504 Side Adjustment Cermet Sealed Trimmer Variable Resistor
Mounting Style :
Through Hole
Resistive Element :
Cermet
Adjustment Orientation :
Side Adjustment
Terminal Style :
Single Turn
Resistance Range :
10Ω~5MΩ
Resistance Tolerance :
±10%；±20%
Contact Resistance Variation (CRV) :
≤3%R or 3Ω
Electrical Travel :
220°
Rated Power(300 volts max.) :
70℃, 0.5W; 125℃, 0W
Operating Temperature Range :
-55°C ~ + 125°C
Total Mechanical Travel :
250°
Description

3362W 102 103 105 501 503 504 Side Adjustment Cermet Sealed Trimmer Variable Resistor

Quick Detail

• 1/4˝ square small size.

• PC pin terminal style.

• Side cross adjustment.

• Cermet resistive material.

• Through hole mounting.

• Power rating 0.5w at 70℃.

• Standard resistance range 10 ohms to 5 megohms.

• Adjustment angle 220°,mechanical angle 250°.

• Withstand high soldering temperatures and thermal shock from typical board washing.

Description

3362W cermet trimmer potentiometer, a compact solution packed with performance. Its 1/4˝ square small size fits snugly into tight spaces, while its robust cermet resistive material ensures reliable conductivity. With PC pin terminal style and side cross adjustment, installation and fine-tuning are effortless. Designed for through hole mounting, it guarantees secure attachment. Boasting a power rating of 0.5W at 70℃, it handles demanding applications with ease. With a standard resistance range from 10 ohms to 5 megohms and a resistance tolerance of 10%, precise customization is assured. Its adjustment angle of 220° and mechanical angle of 250° offer ample flexibility. Plus, The rugged design is achieved by providing sealed terminals that can withstand high soldering temperatures and the thermal shock associated with typical board cleaning, helping to prevent moisture ingress.

Specification

Electrical Characteristics Nominal Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%; ±20%
Terminal Resistance ≤±1%R or 3Ω
Contact Resistance Variation (CRV) ≤3%R or 3Ω
Insulation Resistance 500 Vdc. 100 megohms min.
Withstand Voltage 101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength 500 Vac(1 Min.)
Electrical Travel 220°
Environment Characteristics Resistance to Solder Heat 250℃ for 10 Secs.
Rated Power(300 volts max.) 70℃, 0.5W; 125℃, 0W
Operating Temperature Range -55°C ~ + 125°C
Temperature Coefficient ±250, ±100 ppm /°C
Temperature Variation ΔR≤±3%R, Δ(Uab/Uac)≤±1%
Collision 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
Vibration 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C 1000 hours @ 70℃ Rated Power; ΔR≤±3%R
Rotational Life 200 Cycles, ΔR≤±3%R
Physical Characteristics Total Mechanical Travel 250°
Starting Torque ≤25 mN.m
Clutch Torque ≤35 mN.m

Dimension

501 503 504 3362W 1k 100 Ohm Trim Pot Trimmer Variable Resistor

Packaging

Packaging specification: 50 pieces per tube.

Application

• Calibration of Electronic Devices.

• Industrial Control.

• Medical Devices.

• Communication Equipment.

• Consumer Electronics.

• Aerospace.

• Automotive Electronics.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
