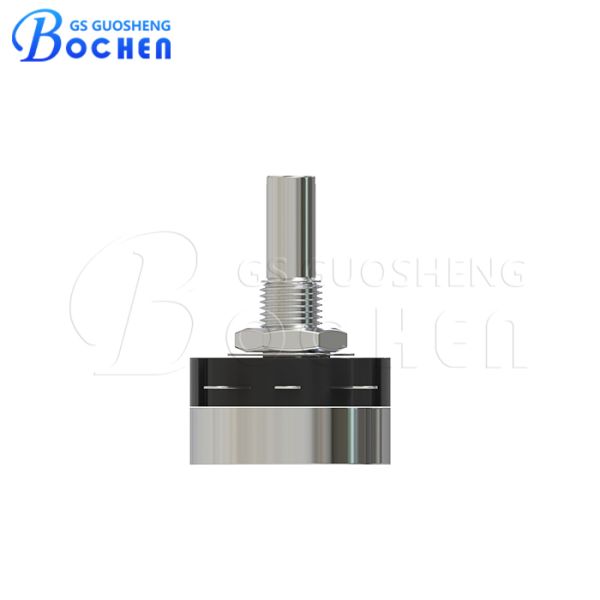

Tocos rv24yn 20s b102 b103 b502 Precision 1k 5k 10 Carbon Film Potentiometer

Features

• 24mm single-turn potentiometer designed for industrial panel control applications.
• Carbon film resistive element ensures stable and precise adjustments.
• Available in linear and audio tapers for different response characteristics.
• Offered in single, tandem, and triple configurations with a single shaft, or dual-unit models with dual shafts.
• Integrated SPST or SPDT switch with 1A or 3A current rating for added functionality.
• Shaft lock and center tap options for enhanced control.
• Durable metal shaft and bushing for long-term reliability.
• Panel mount design for secure installation.
• Right-angle ear-lug terminals for easy circuit integration.
• 6mm diameter shaft, available in slot, flat, or round end designs.
• Standard shaft lengths of 15mm or 20mm to suit various applications.

Description

The RV24 carbon film potentiometer is a high-performance variable resistor widely used in electronic circuits to control resistance and signal levels. Featuring a carbon film resistive element, it delivers smooth and consistent adjustments, ensuring reliable performance in diverse applications.

With an adjustment travel of 280° and a mechanical travel of 300°, the RV24 provides excellent linearity and stability, making it ideal for fine-tuning voltage, current, and signal parameters. Available in a broad resistance range from 50Ω to 2MΩ (±10% tolerance), it accommodates different circuit requirements with ease.

Designed for durability and ease of integration, the RV24 features a metal shaft and bushing, ensuring long-lasting operation even in demanding environments. Its compact panel-mount design and right-angle terminals make it suitable for space-constrained applications across various industries.

Specification

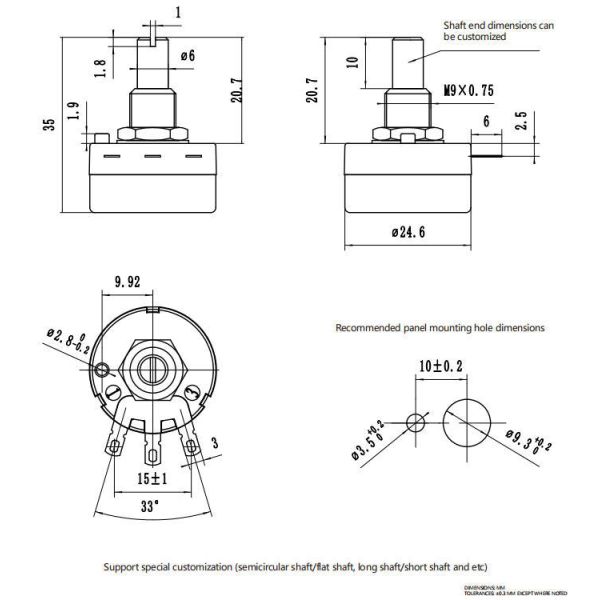

Dimension

Packaging

Packaging specification: 1. 20 pieces/box; 200 pieces/box; 800 pieces/carton/4 boxes 2. 800 pieces/25KG/67*35*30cm

Applications

The RV24 carbon film potentiometer is a versatile component used in a wide array of industries, including:

1. Consumer Electronics

• Audio Equipment – Volume and tone control in amplifiers, radios, and sound systems.
• Display Controls – Brightness and contrast adjustment in TVs and monitors.
• Appliance Interfaces – User controls in air conditioners, ovens, and washing machines.

2. Industrial Equipment

• Instrumentation & Measurement – Precision adjustment in test equipment and monitoring devices.
• Process Control – Parameter tuning in automation and control systems.
• Motor Drives – Speed and torque regulation in industrial machinery.

3. Automotive Systems

• Dashboard Controls – Regulation of lighting, climate, and audio systems.
• Throttle & Brake Systems – Position sensing in accelerator and brake mechanisms.
• Steering & Suspension – Fine-tuning in advanced automotive applications.

4. Medical Devices

• Diagnostic Equipment – Adjustment of settings in ECG machines and blood pressure monitors.
• Therapeutic Devices – Control of parameters in infusion pumps and ventilators.
• Imaging Systems – Precision tuning in X-ray, MRI, and ultrasound equipment.

5. Telecommunications

• Signal Control – Level adjustments in radio transmitters and receivers.
• Network Equipment – Fine-tuning settings in routers, switches, and base stations.
• Broadcasting Systems – Calibration in satellite and communication equipment.

6. Aerospace & Defense

• Avionics Systems – Precision control in navigation and cockpit instruments.
• Radar & Communication – Parameter tuning in military and aerospace equipment.
• Mission-Critical Interfaces – User controls in defense applications.
