3590s 2 103l 10k ohm Bourns Precision Multi-loop Potentiometer

Description

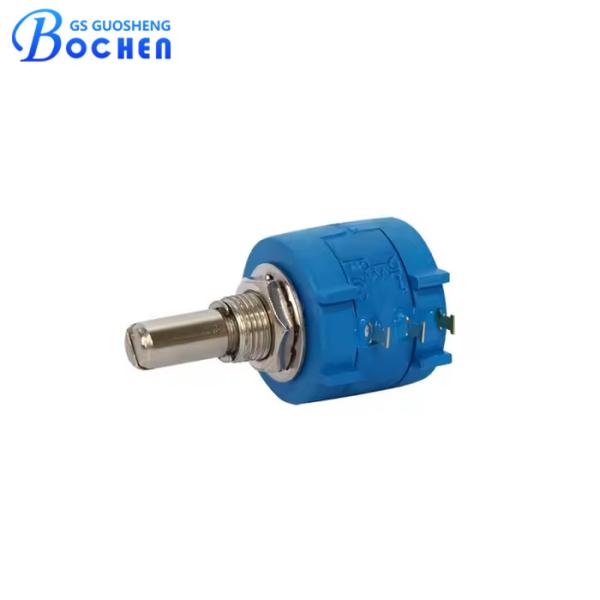

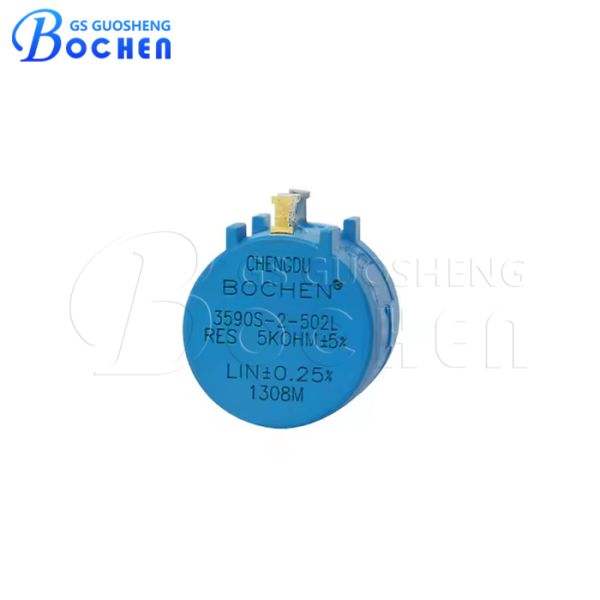

The 3590S-2-103L is a precision-engineered, multi-turn wirewound potentiometer designed for applications requiring exceptional accuracy and reliability. Featuring a robust bushing mount for secure installation, this potentiometer offers versatile connection options, including solder lugs or wire leads, with an optional AR pin for enhanced functionality. Constructed with either metal or plastic shafts and bushings, it caters to diverse durability and operational requirements.

Rated at 2 watts of power dissipation at 70℃, the 3590S-2-103L ensures stable performance under moderate thermal conditions. It provides a nominal resistance of 10k ohms with a tolerance of 5%, delivering precise resistance control. The device achieves an independent linearity of 0.25%, underscoring its high precision. With an effective electrical travel of ≥3600°-10° and a total mechanical travel of 3600°±10°, it enables extensive adjustment range and fine-tuning capabilities.

Features

• Bushing mount.
• Solder lugs or wire lead available.
• Multi-turn precision pot, 1/4" metal shaft, 3/8" metal bushing.
• Rated power 2w at 70℃.
• Nominal resistance 10k ohms, tolerance 5%.
• High precision, independent linearity 0.5%.
• 10 turns wirewound, 3 turns, 5 turns can be customised.

Specification

Dimension

Packaging

Packaging specification: 25 pieces/plastic box, 50 pieces/box.

Applications

The 3590 wirewound potentiometer is widely utilized in a variety of specific electronic devices and equipment due to its precision, durability, and versatility:

• Precision Measurement Instruments: Used in oscilloscopes, signal generators, and other test and measurement equipment where precise calibration and adjustment of electrical signals are crucial.

• Audio Equipment: Found in professional audio mixing consoles, amplifiers, and equalizers for precise control over audio signal levels and tonal characteristics.

• Industrial Controls: Integrated into PLCs, motor speed controllers, and industrial automation systems to adjust parameters such as speed, voltage, and current with accuracy and reliability.

• Telecommunications Equipment: Utilized in communication devices such as modems, routers, and base stations for signal trimming and alignment to ensure optimal transmission quality and stability.

• Medical Devices: Found in medical equipment like patient monitoring systems and diagnostic devices where precise resistance adjustments are necessary for accurate data acquisition and analysis.

• Aviation and Aerospace: Used in avionics systems and spacecraft instrumentation for fine-tuning electronic circuits and sensors to meet stringent performance and reliability standards.

The 3590 wirewound potentiometer is preferred in these applications for its ability to provide stable and repeatable resistance adjustments, high precision with low noise, and robust construction capable of withstanding demanding environmental conditions. Its design allows for customization in shaft length and mounting options, further enhancing its suitability across various electronic systems and industries.

Why choose the 3590S potentiometer?

The 3590S stands out for its exceptional precision, robust construction, and adaptability to various operational environments. Its customizable design, including shaft length and mounting options, makes it a versatile solution for a wide range of industries. Whether in industrial automation, telecommunications, or aerospace, this potentiometer delivers reliable performance, ensuring accurate and repeatable resistance adjustments in even the most demanding applications.
