24CH 19in Touch Screen body Camera Docking Station Fast Data Export
24CH 19in Touch Screen body Camera Docking Station Fast Data Export
Specifications
Brand Name :
YULONG
Model Number :
DMT-Q4
Certification :
CE,FCC
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000/year
Delivery Time :
7~10 working days
Packaging Details :
1PC in one carton box
Color :
Grey
Data transfer :
USB 3.0
Port :
24CH
Screen :
19'' touch screen
OS :
Windows
Material :
Metal
Description

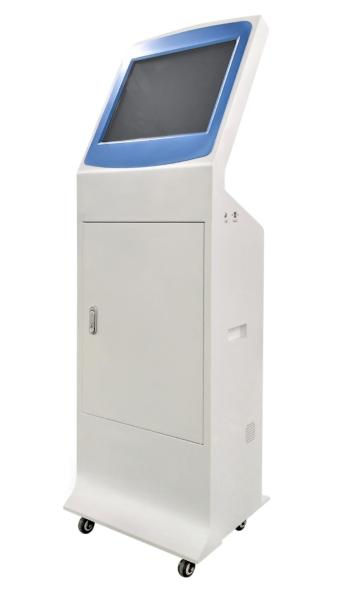

24CH 19in Touch Screen Body Camera Docking Station Fast Data Export

24CH Docking Station 19'' Touch Screen Fast Data Export And Battery Recharge

DMT-Q4 is a professional Mult-cell docking station based on windows operating system, which design for the body camera to achieve data exporting, uploading and battery recharge, it support at most 24 channel camera slots working at the same time, and the average upload speed of each port can be more than 3MB/S, it will back up all the data files from body camera to local disks, and then upload it to the center server timing or manually, it support RAID1. RAID5 backup mode, make sure all the data files are secure.

Main Features of docking station:

19 inches touch screen with resolution of 1280*1024

Support 24 channel camera for backup and recharge.

Priority exporting channel supported.

Support Ethernet port for network function.

Local search and playback supported.

Fast data export and battery recharge.

RAID1, RAID5 protection level supported.

Supports upload data to the center server automatically.

Support different user authority access

Windows operating system supported

Specification:

Model No. DMT-Q4
Hardware Screen 19 inch touch screen, resolution 1280*1024
Memory 4G
Storage Support 8 disks (each one can up to 8TB)
Data interface 24 channel optional (USB connection)
Software OS Windows10 64 bit (Optional)
Software PMedia software
Environment Working temperature -10℃--55℃
Working time 7*24 hours continue working
Structure Dimension 1750mm*500mm*400mm
Weight 52kg
Working power Normal voltage: AC100V—240V~50/60HZ
Network One RJ45, 10/100M
USB 4 USB 3.0 ports

Software Function

 Automatically backup When BWC connect to the terminal, it will back up all the video, audio, pictures and log file automatically.
Priority backup The terminal has one priority backup channel; it will back up the data from this interface firstly.
Storage empty The terminal will empty all the data in the BWC when the backup finished.
Status display During the backup progress, it can display the device id, name, group, storage space, backup status and so on.
Auto-archiving When all the data finished backup, the terminal will archive and classify all the data based on recording date/time, device number, username, group name, video type, and video size and so on.
User pairing When the BWC paired with one user, the terminal can read the data from this BWC automatically.
Remark file The authorized user can login the software to make a mark or description for any of the file that he has the authority.
Data Search The authorized people can login the software to search any files based on recording date/time, uploaded date/time, unit number, officer number, officer name, group name, file type, data level, remark info and so on.
Playback The authorized people can login the software to playback any video he have searched, and it support playback full screen, forward and back, pause and so on.
Data overwrite The system will overwrite all the unmarked video and old data automatically based on a certain time.
Upload All the marked video files will upload to the center server automatically based on the grade and network status.
Backup The terminal can back up all the data automatically, also, center server can remote backup all the file manually
System log System will record all operation log of the terminal.
Backup time 24 channel 16G data can be finished in 90 minutes, and 24 channel 16GB data can be finished in 110 minutes.
Recharging 24 channels BWC can finish recharging in 4 hours and 45 minutes if the unit is OFF, if it’s ON, it need about 6 hours. 24 channels BWC can finish recharging in 5 hours if the unit is OFF, if it’s ON, it need about 6 hours and 15 minutes.
Security Only authorized people can access the terminal to backup data.

System diagram of data achieving:

24CH 19in Touch Screen body Camera Docking Station Fast Data Export

FAQ:

1. Is there a minimum order quantity(MOQ)?

There is no MOQ limit for the initial cooperation, but if have OEM requirements such as customized label or Logo, we will need to evaluate it and then decide to charge or not.

2. Can you provide OEM/ODM services?

Yes, we can provide OEM/ODM services, but there is a MOQ request, the quantity request is different if the model is different, please contact our business manager for specific information.

3. What include in the package if buy sample?

1 Docking station& 1 power adapter& 1 lock key

4. Please instruct the payment term.

Normally we use 100% T/T in advance; if batch order, you can pay 30% deposit in advance for production and 70% before shipment.

5. How to upload data files?

Connect the body camera to the docking, it will charge the camera and backup the data automatically, if you have configured the server information, it will upload the data files to the center server automatically.

6. The docking station included the operating system before shipment?

Yes, it will include the Standard English version Windows operating system, if have any special requirements before shipment, please contact the sales people.
