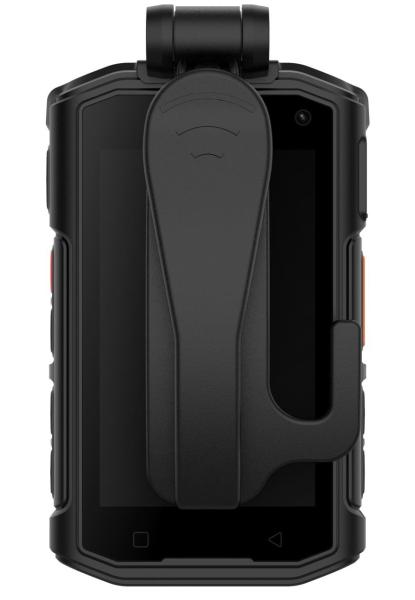

Infrared 10M 1080P 4G Police Body Cameras 13M CMOS Sensor Pre Post Recording
Night Vision 4G Law Enforcement Camera 1080P Resolution Pre&Post Recording
BWC-R3H is an intelligent body worn camera with built-in 4G, WIFI, GPS and Bluetooth, it has a 3.1 inch big touch screen, which for easy and friendly operation, especially for the video conference call, two-way audio communication, local video playback, picture preview and so on. The rugged design is resilient to withstand demanding work environments faced by law enforcement officers, military and security detail.
Main Feature:
Live streaming support 4K resolution at most
H.265/H.264 video compression
Specific Type-C USB3.0 connection
Two cameras design for different applications
Hot-swappable 3050mAh lithium battery
8 Hours continues recording supported
Built-in storage max support 256GB
Support network group talk function
Special PTT button for group talk application
Support two-way audio communication
Datasheet of body camera:
Model No. | BWC-R3H | |
Main function | System | MTK platform, android system 7.1 |
CPU | 8-core 64-bit, 2.3GHz | |
Memory | 2G+64GB | |
Lens& Sensor | 13M CMOS sensor, 110 degree wide-angle | |
Screen | 3.1inch color touch screen | |
External port | Support Type-C USB3.0 | |
Storage | Up to 256GB, standard is 64GB (Built-in Flash) | |
Video | Resolution | 4K30FPS, 2K30FPS, 1080P30FPS, 720P30FPS, 480P30FPS |
Compression | H.265/H.264, Video format is MP4 | |
Video clip | Configurable options, such as 10,20,30 minutes | |
Pre-recording | Up to 60 seconds. | |
Post-recording | 10s to 30mins configurable | |
Snapshot | Picture | 42 Mega interpolation maximum |
Picture format | JPEG | |
Night Vision | Distance | Up to 10 Meters |
IR switch | Auto or manual | |
Flashing light | Support blue and red flashing light | |
Power | Battery | 3200mAh |
Working hours | 720P continues working 8 hours | |
Charging time | Less than 3 Hours | |
Structure | Weight | 170g |
Dimension | 96x60x21 (mm) | |
Drop resistance | 2 meters | |
IP grade | IP66 | |
Working Temp | -30 degree to +55 degree | |
Others | 4G network | TDD-LTE Band38/39/40/41 FDD-LTE Band1/2/3/4/5/7/8/20 GSM 850/900/1800/1900 WCDMA Band1/2/5/8 TD-SCDMA Band34/Band39 |
Built-in WIFI | 802.11 a/b/g/n, support both 2.4G and 5G frequency | |
Built-in GPS | For GPS live tracking | |
Bluetooth | BT4.2, for wireless earphone | |
Quality | Certification | CE, FCC |
Other features:
Overwrite function: When the storage if full, it can overwrite the old video files, makes the storage data first in first out.
Pre-recording: When you press the recording button, the camera will save about 30 seconds video buffer, which help you to record the whole situation.
Drop off recording: when the camera is dropped off, or hit by something, it will start the recording automatically, it is based on built-in G-sensor.
Hotpoint network sharing: It means the camera can share the 5G network through WIFI for other devices, and you can define the access name and password.
Overlay: It support to add the overlay info in the video file, such as date/time, username, camera ID and other information.
Motion detect: When this option is on, anything is moving at front of the camera, it will start video recording automatically, when nothing is moving, it will stop recording automatically.
