Two Way Talk 5G Law Enforcement Body Cams MTK Military Body Camera
Body Worn Law Enforecement Camera 4G/5G Network And Two Way Talk

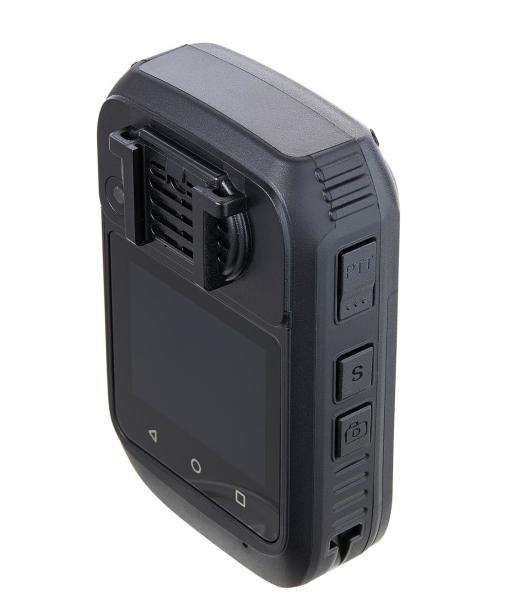

BWC-R5 is an body camera based on android system, which integrated with 5G network, compatible with 4G/3G network, and support GPS, WIFI and Bluetooth; both local recording and live streaming support 4K/24/1080P/720P full HD resolution, dual SIM card design make sure the camera has the network in any signal coverage
Specification:
Model No. | BWC-R5 | |
Main function | System | MTK platform, android system 10.0 |
CPU | 2xA76+8xa55 2.0GHz, 7nm | |
GPU | Manhttan 3.0:40fps(peak) | |
Memory | 4G | |
Lens& Sensor | 12M CMOS sensor, 130 degree wide-angle | |
Screen | 2.0 inch color touch screen | |
External port | Support Type-C USB3.0 | |
Storage | Up to 256GB, standard is 64GB (Built-in Flash) | |
Video | Resolution | 4K30FPS, 2K30FPS, 1080P30FPS, 720P30FPS, 480P30FPS |
Compression | H.265/H.264, Video format is MP4 | |
Video clip | Configurable options, such as 10,20,30 minutes | |
Pre-recording | Up to 60 seconds | |
Post-recording | 10s to 30mins configurable | |
Snapshot | Picture | 42 Mega interpolation maximum |
Picture format | JPEG | |
Night Vision | Distance | Up to 10 Meters |
IR switch | Auto or manual | |
Flashing light | Support white light,blue and red flashing light | |
Power | Battery | 3200mAh |
Working hours | 1080P continues working 8 hours | |
Charging time | About 4 Hours | |
Structure | Weight | 187g |
Dimension | 93*60*28 (mm) | |
Drop resistance | 2 meters | |
IP grade | IP67 | |
Working Temp | -30 degree to +55 degree | |
Others | 5G network |
5G:SA/NSA Sub-6(n1, n3, n41, n77, n78, n79) Compatible with: 4G-TDD(B34/38/39/40/41) 4G-FDD(B1/2/3/4/5/7/8/12/17/20 GSM 850/900/1800/1900 |
Built-in WIFI | 802.11 a/b/g/n, support both 2.4G and 5G frequency | |
Built-in GPS | GPS, A-PGS, For GPS live tracking | |
Bluetooth | BT5.0, for wireless earphone | |
Quality | Certification | CE, FCC |
Key features:
1. 5G transmission: Support 5G network bands, can do 5G live video and transmission
2. HD resolution: Support 4K/2K/1080P resolution for recording, max resolution for image over 8000×4500
3. SOS alarm: After long pressing the SOS button, the device should automatically alarm, the management platform can flash the SOS distress location, other devices of the same group within the preset range can receive the SOS distress message, and the administrator should be able to call the live video.
4. PTT button: After platform add a group with some cameras, any camera can do group talk to others via press PTT button.
5. Two-way audio/video: camera can do video/audio intercom with other camera at same group, also can talk to platform software
6. Command receiving: when the center server push the instruction message, camera can receive the commanding and can send out voice reminders.
FAQ:
Can the platform make a secret or spy video call to the device?
Yes, we can do this operation; currently, when platform call the video, camera will have an indicator light flashing, we can disable it.
Does the platform support Geofences?
Yes, it can, you can drawing a special area for each camera
What type of notification does the platform receive when the SOS button is pressed?
You can do different configurations, it can pop-up the live video streaming, and give the alert audio notification
