Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
Specifications
Brand Name :
SECUERA
Model Number :
SE-6550
Certification :
CE,FCC, ROHS, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
300 pcs per month
Delivery Time :
2-3 days after payment
Packaging Details :
wooden packing
Tunnel Size :
653(W)mm*505(H)mm
Conveyor speed :
0.20m/s
Conveyor height :
693mm
Max Load :
150kgs
Wire Resolution :
38AWG
Frame size :
2043*901*1384mm (L*W*H）>
Cooling/operation cycle :
Oil Cooling /100%
Image Checking :
Continuous check back image
Description

Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check

SE-6550 medium size X ray baggage scanner for hotels bank security check(x ray scanning Device)

Specifications of SE-6550 X Ray Baggage Scanner

High Light

◆ Powerful image dealing ability;

◆ Outstanding image quality;

◆ Accurate Z7,Z8,Z9 mark for explosive and narcotics;

◆ Windows 7 operation system；

◆ Automatic save scanned image;

◆ Friendly operation System;

◆ Reliable performance.

Technical characteristics

◆ >Dural energy penetration system;

◆ TIP program;

◆ Clear and distinct image;

◆ Scanned imaged can zoom up to 64 times;

◆ Partly zoom up to 3 times;

◆ 13 kinds of image processing functions and 6 kinds of pseudo color;

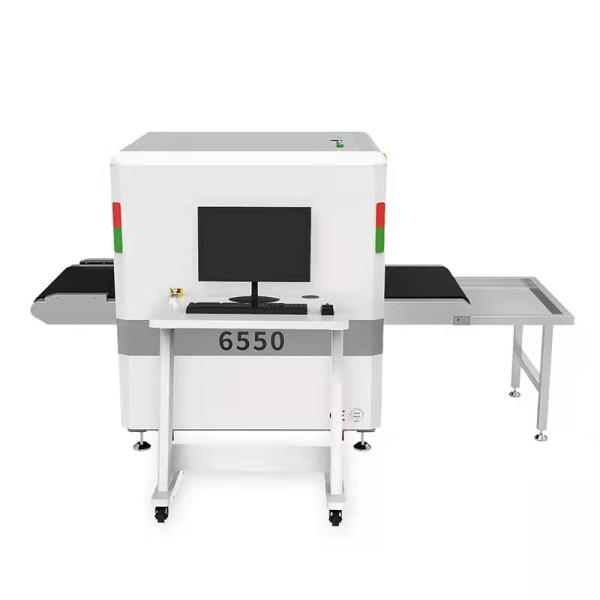

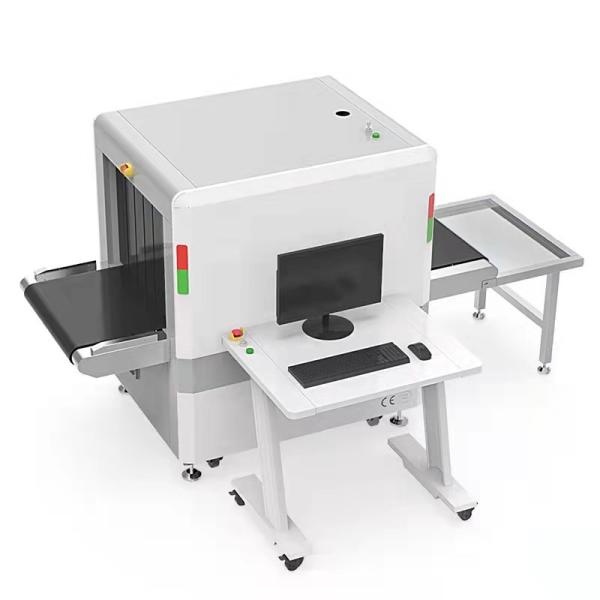

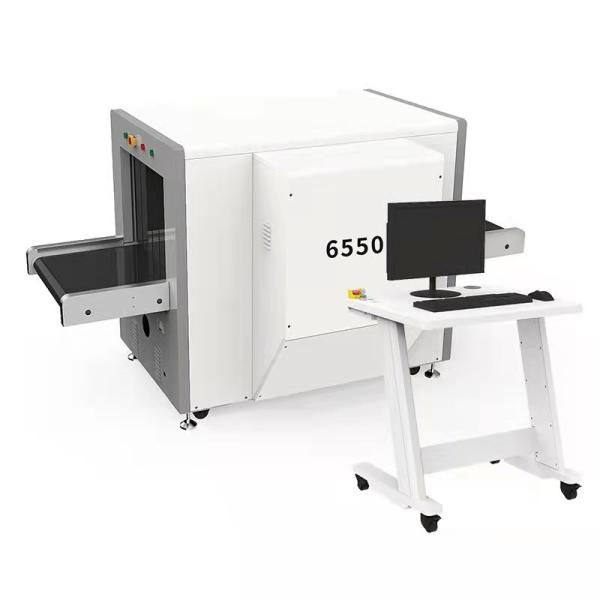

Image Photo of SE-6550 X Ray Baggage Scanner

Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check

Technical parameters

Tunnel size

653*505mm (w*h)

Conveyor speed

0.20m/s

Conveyor height

693mm

Max Load

150kgs

Wire Resolution

38AWG

Spatial resolution

vertical:>>diameter 1.0mm>>,horizontal>:diameter 1.0mm>

Penetration

35mm steel panel

Monitor

21.5 inch,>>High >>resolution 1280*1024

X Ray generatoranode voltage

160KV (Working at 150KV)

Cooling/operation cycle

Oil Cooling /100%

X ray Dose per inspection

< 1.14>>U>>Sv

Image processing

Pseudo color/black & white image,>>Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image

Zoom

Variable zoom up to X64, support continuous magnification.

Image Checking

Continuous check back image

Storage capacity

Can store more than 100000 image

Radiation leakage

<0.5 >>USv/h>>(5cm away from fame>),>in full compliance with all international radiation safety requirements.>

Film safety

In accordance with ASA/ISO1600 film safe standard

System function

F1,F2,F3 programmable key,>>high density alarm>>,TIP>；date/time display>,baggage Count>,User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.>

Optional function

Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up

Frame size

2043*901*1384mm (L*W*H)>

Weight

500kg

Environment temperature/humidity

- 3℃～>>+40℃ / 5%>>～95%>(non-condensing>)

Storage temperature/humidity

-43℃～>>+60℃ / 5%>>～95%>(non-condensing>)>

Power

220VAC (+/-10%) 50+/-3HZ

Consumption

0.7KvA

Noise Level

<55db

Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.

Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points;

Entertainment venues; Tourist attractions; Office buildings; Shopping malls;Factories, etc;

Application of SE-6550 X Ray Baggage Scanner

Medium Size 693mm X Ray Baggage Scanner For Hotels Bank Security Check
