Structure :
Fire tube and water tube
Application :
Heater Parts
Corrosion Resistance Water Wall Panels For Power Plant Steam Boiler radiation heat transfer :
Customized
Style :
Horizontal And Vertical
Type :
Boiler Waterwall Panel
Description

Corrosion Resistance Water Wall Panels For Power Plant Steam Boiler radiation heat transfer

Corrosion Resistance Water Wall Panels Advantages

1. Ensure the sealing of furnace wall and reduce air leakage in combustion chamber.
2. Realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.
3. Low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.
4. It is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.
5. Compared with the light pipe, the heat absorption capacity of the pipe is improved.
6. Improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.

Carbon Steel Membrane Water Wall Panels Functions

1. Protect the furnace wall and reduce the erosion and damage of high temperature smoke and slag in the furnace to the furnace wall.
2. After installing water wall, the temperature of inner wall and flue gas temperature in furnace are greatly reduced, which can effectively prevent slag forming on furnace wall and heating surface, and reduce thickness and weight of furnace wall.
3. Modern large boiler, the use of furnace wall and water-cooled wall tube together to form a pipe-type or tube on the furnace wall, that is, the use of water-cooled wall tube suspended furnace wall.
4. The high temperature flame in the furnace conducts heat to the water-wall tube, mainly by radiation.
The radiative heat transfer intensity is proportional to the fourth power of the absolute gas temperature.
5. Because the gas temperature in the furnace is very high, so, the water wall tube in the furnace to absorb radiation heat transfer is very strong, is the main boiler evaporation heating surface.
6. For high pressure and ultra-high pressure boilers, radiant superheater is usually arranged on the top of the furnace;
7. For the dc boiler, part of the preheating heating surface (equivalent to economizer) and overheating heating surface (equivalent to superheater) are often arranged in the water wall;
8. While the supercritical dc boiler, because there is no evaporation heating surface, the water wall is only used to heat water and superheated steam.

Membrane Water Wall Panel Product details

1. Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.

2. It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.

3. Because of both cooling and protection of the furnace wall, so the name.

4. The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.

5. Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.

Product Parameter
Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, Customize
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber
Product Name
Membrane Water Wall
Applied Area
Water tube boiler
Material
- Carbon Steel : 20#, 20G, A195, A-1
- Alloy Steel : 15CrMoG, T11
Standard
China GB, ASME, EN
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Working Temperature
Saturation Temperature
Tube Specification
Tube Outer Diamter
- Common use : Φ42 mm, Φ51 mm, Φ57 mm, Φ60 mm
- Other
Tube Wall Thickness
As per Customer requirements
Tube Pitch (c-c)
95 mm, 100 mm, 105 mm, 110 mm
Bending
Panel Bending
Welding
Automatic GMAW, Automatic SAW
Welding NDT
100% RT on tube butt welding
Air Tightness
Excellent

Product Display

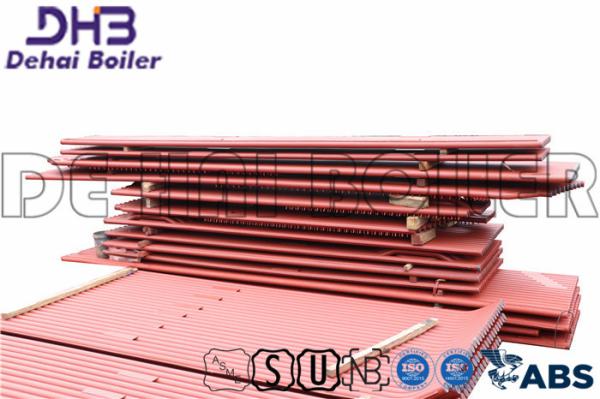

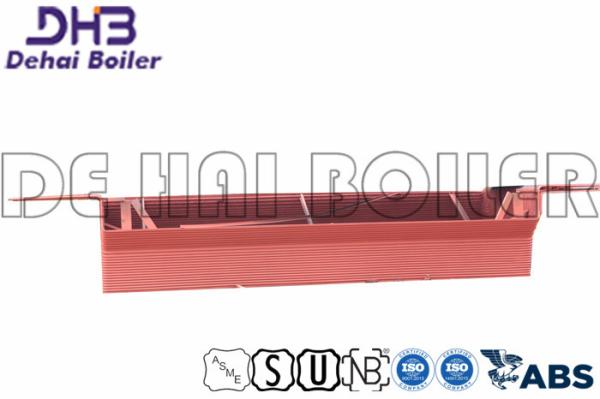

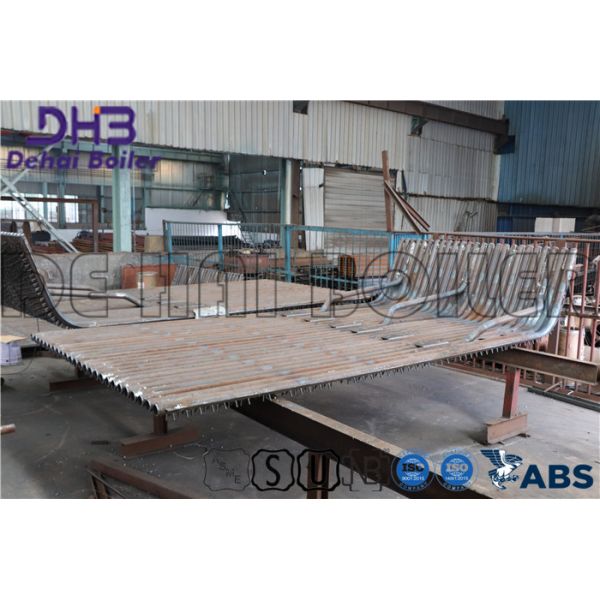

Improved Heat Absorption Membrane Tube Low Heat Storage Capacity
