Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
Specifications
Brand Name :
Dehai Boiler
Model Number :
Membrane wall
Certification :
ISO9001 , SGS , ABS , ASME
Place of Origin :
China
MOQ :
10 Tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
800 Tons / Month
Delivery Time :
50 Days
Packaging Details :
Seaworthy packing
Structure :
Fire tube and water tube
Application :
Heating Elements
Corrosion Resistance Water Wall Panels For Power Plant Steam Boiler radiation heat transfer :
Customized
After-sales Service :
Free spare parts
Fuels :
Coal
Certificate :
ISO9001 , SGS , ABS , ASME
Style :
Horizontal And Vertical
Output :
Hot Water / Steam
Description

Evaporation Heating Surface Boiler Water Wall Tube Panels For Hot Water Steam Boiler boiler combustion

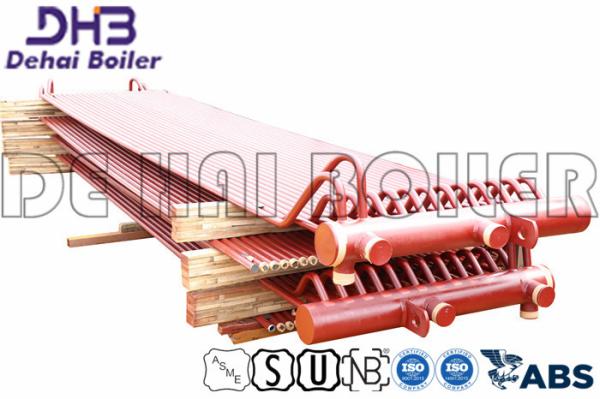

Boiler Water Wall Tube Panels Product Description

Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.

Inspection Details

1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safety.

Membrane Water Wall Panel Product

1. Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.

2. It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.

3. Because of both cooling and protection of the furnace wall, so the name.

4. The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.

5. Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.

Product Parameter
Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, Customize
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber

Material of base pipe Carbon steel,Alloy steel, Aluminium or Stainless
Material of fins Carbon steel,Alloy steel,Aluminium or Stainless
Type of base pipe Seamlesss,Welded
Type of fins welded or whole
OD of Base pipes 15mm-219mm
WT of base pipes 1.5-6mm
Width of fins 6mm-30mm
WT of fins 0.8mm-3.0mm
Length of blank area according to Customer's request.
Length of finned tubes ≤23m

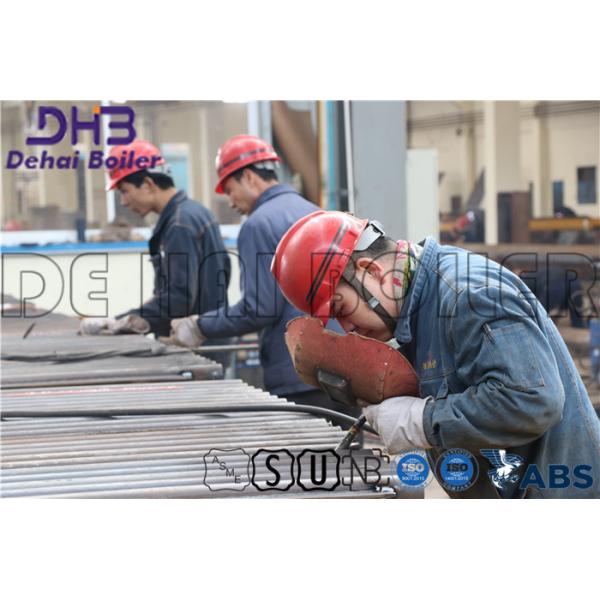

Fabrication process

Evaporation Heating Surface Water Wall Panel Boiler Reduce Heat Loss Gas Tight Nature
