Power Station HRSG Boiler , High Pressure Steam Boiler Vertical Gas Flow Type
Power Station HRSG Boiler , High Pressure Steam Boiler Vertical Gas Flow Type
Power Station HRSG Boiler , High Pressure Steam Boiler Vertical Gas Flow Type
Power Station HRSG Boiler , High Pressure Steam Boiler Vertical Gas Flow Type
Specifications
Brand Name :
Dehai Boiler
Model Number :
CFB Boiler
Certification :
ISO9001 , SGS , ABS , ASME
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets / Year
Delivery Time :
150 Days
Packaging Details :
Seaworthy packing
Type :
Natural Circulation
Usage :
Power Station
Pressure :
High Pressure
Fuel :
Waste Heat
Efficiency :
High efficiency
Keywords :
Waste Heat Recovery Boiler
Description

Waste Heat Water Tube Boiler HRSG Waste Heat Recovery Boiler catalyst reduction

Highly economical

1. Dehai Boiler offers two types of HRSG, a vertical gas flow type (Vertical HRSG) and a horizontal gas flow type (Horizontal HRSG).

2. In addition, by combining a vast array of established construction methods for assembly and installation, Dehai Boiler can develop proposals with specifications optimized to the transportation and site requirements.


HRSG Waste heat recovery boiler Applications

1. Heat recovery can be used extensively in energy projects.
2. In the energy-rich Persian Gulf region, the steam from the HRSG is used for desalination plants.
3. Universities are ideal candidates for HRSG applications. They can use a gas turbine to produce high reliability electricity for campus use.
4. The HRSG can recover the heat from the gas turbine to produce steam/hot water for district heating or cooling.
5. Large ocean vessels (e.g. Emma Maersk) make use of heat recovery so that their oil-fired boilers can be shut down while underway.

Technical Parameter

Product Name
Waste Heat Boiler / Heat Recovery Steam Generator
Applied Area
- Incinerator waste gas
- Engine waste gas
- Factory waste gas
Capacity Range
30t/h ~ 220 t/h
Working Pressure
4.0MPa, 5.2MPa, 6.6MPa, 9.8MPa, 11.2MPa, 13.7MPa,
and other as per Customer requirements
Working Temperature
400℃, 450℃, 485℃, 512℃, 540℃,
and other as per Customer requirements
Standard
GB, ASME
Combustion
Combined Grates, Chain Grate, Reciprocating Grate, CFB
Manufacturer Grade
China A Grade, ABS certified
Steam Type
Superheated Steam, Saturated Steam, Hot Water
Structure
- Full membrane water wall protected chamber
- 3 / 4 passes of flue gas pass
- Full positive steel sealing, excellent air tightness
- Full steel structure supporting/hanging
Water/Steam Circulation
Natural Circulation
Certificate
- China GB Certificate
- ASME "S" Certificate(Stamp)
- CE Certificate
- Other Certificate as per Customer requirements
New Model
- Design per Customer requirements
- Fabricate per Customer order
- Brand New Product
Applied Area
- Industry (Sugar mill, oil mill, wood factory, rice factory, etc)
- Incineration Plant
- Power plant
- Heat power co-generation plant
Emission Control System
(option)
The following techniques are adaptable as per emission requirements
- SNCR de-NOx
- Multi-Cyclone Separator
- Bag Filter
- ESP (ElectroStatics Precipitator)
- Wet Scrubber
Product Display

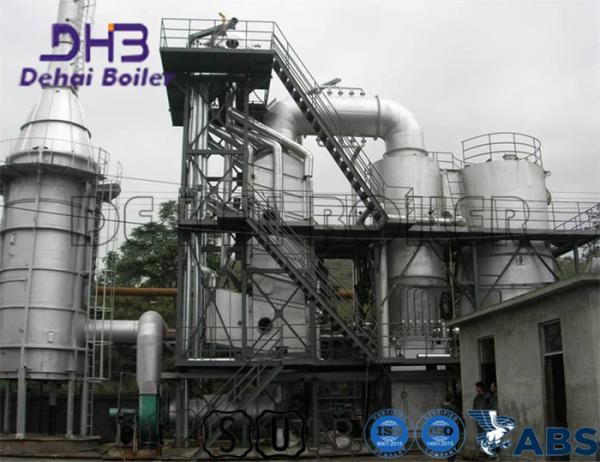

Power Station HRSG Boiler , High Pressure Steam Boiler Vertical Gas Flow Type
