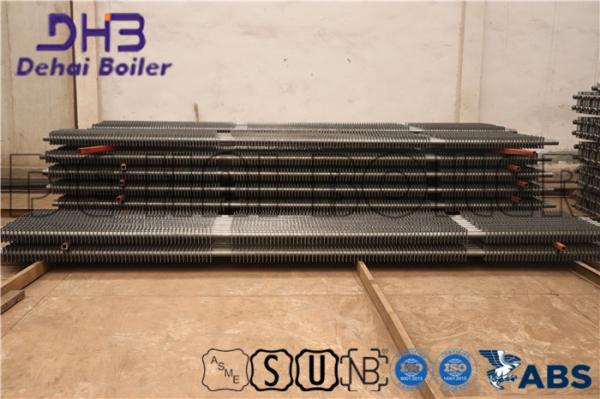

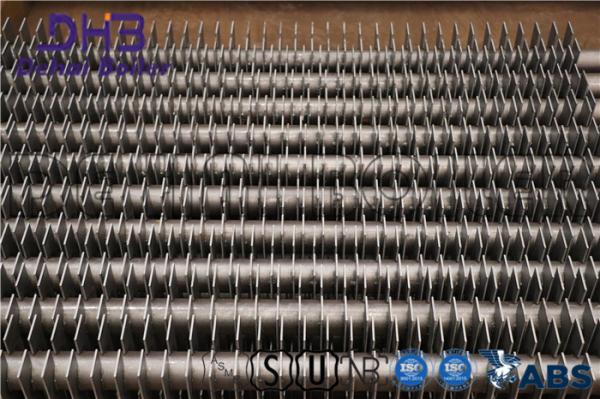

Economizer Boiler Fin Tube Exhaust Gas Cast Iron Fin Tube steam generators finned tube heat exchangers

Economizer Boiler Fin Tube Application

1. A typical application of economizers in steam powerplants to capture waste heat from boiler stack gases (exhaust gas) and transfer to the boiler feed water.

2. This will increase the temperature of boiler feed water, lowering the desired energy input, successively reducing the extent needed for firing the boiler rated output.

3. Economizers lower the stack temperature will cause condensation of combustion gases and acid corrosion serious instrumentation injury if care isn't taken within the style and material choice.

Boiler Finned Tube Function

1. Modern boilers, like in coal power plants, still equipped with economizers that are descendants of the initial style of the inexperienced.

2. During this context they are usually said because the feed hot-water tank and hot atmospheric phenomenon from the rotary engine before it's pumped-up to the boiler.
3. Economizers are generally used as a part of the warmth recovery steam generators in combined cycle station.

4. Within the HRSG, water passes through saver, boiler and superheater then later. It conjointly prevents flooding saver within the boiler with liquid water is simply too cold to boiling given rate and boiler style.

Product Advantage

1. Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2. H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3. H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4. With straight channel to gain the best ash-blowing effect.
5. The compact structure to reduce the weight and reduce the manufacturing cost.
