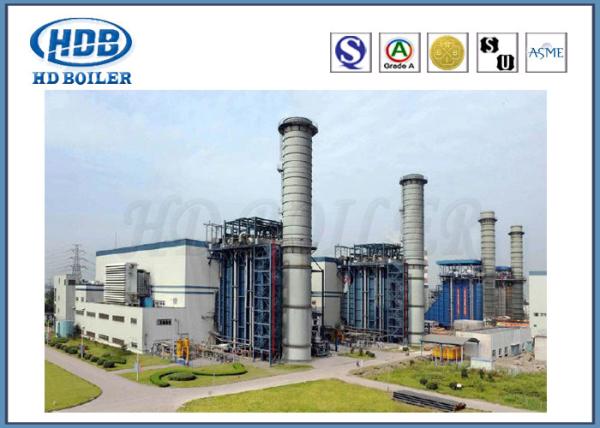

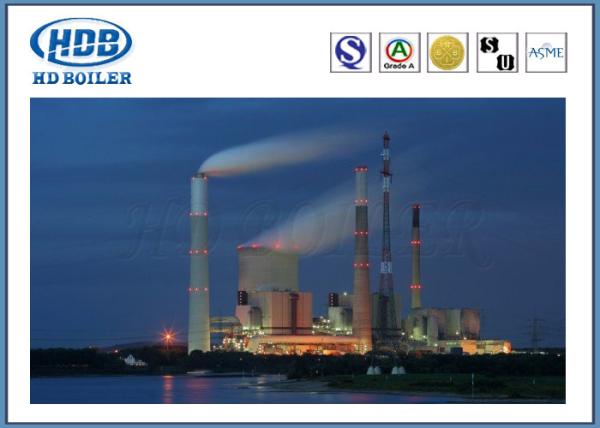

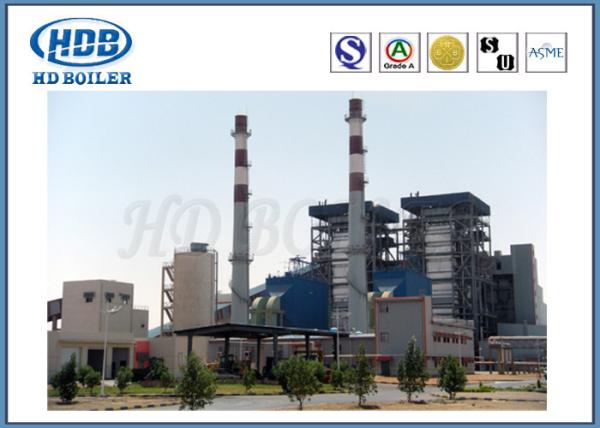

Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
Specifications
Brand Name :
HD Boiler
Model Number :
CFB Boiler
Certification :
ISO9001,ASME,Grade A,SGS,EN,TUV
Place of Origin :
Zhangjiagang,Jiangsu,China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets /Year
Delivery Time :
Negotiation
Packaging Details :
Seaworthy Packing
Condition :
New
Structure :
Fluidized bed
Fuel :
Coal / Biomass
Water Circulation :
Natural circulation
Pressure :
High Pressure
Range of Applications :
Industrial/Power station
Specification :
Customized
Manufacturing Level :
A
Place Style :
Vertical
Burning Style :
Fluidized Bed Furnace
After-Sales Service Provided :
Engineers Available To Service Machinery Overseas
Description

Coal Boilers of 75 T/H Circulating Fluidized Bed Steam Boiler for Industrial Use (CFB)

Product Description

HD circulating fluidized bed boiler is energy saving which is mainly installed at power plants to generate electricity.
HD CFB boiler adopts stationary equipment design theory and CFB boiler technical parameter.

Circulating fluidized bed is of low-temperature combustion, therefore, nitrogen oxides emissions of such boiler is much lower than that of coal-powder boiler, and such boiler could directly desulfurized during combustion process. Circulating fluidized bed boiler with high desulfurization rate is economical.

Parameter

Item Unit Specification
Model HD-75/3.82-M HD-75/5.3-M HD-75/9.8-M1
Rated evaporation t/h 75
Max.Continues evaporation t/h 85
Rated steam pressure MPa 3.82 5.3 9.8
Rated steam temperature ℃ 450 485 540
Feed water temperature ℃ 150 150 215
Fuel type Anthracite, lean coal, bituminous coal, lignite, petroleum coke, breeze, etc.
Furnace height M 26.2
Furnace section m2 21
Number of coal feeder Unit 2
Super heater thermostat mode Spray desuperheater
Unburned carbon(bituminous coal) % <6
Pre-heater air temperature ℃ 150
Exhaust gas temperature ℃ 145.5


Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h

Warranty and after-sale service

Honor promises the top quality of every set of machine and best after-sales service as followings :
(A) The boiler body guarantee is two years , for accessories three years
(B) During the guarantee period , if the main body defective or broken without wrong operating , must replace the parts for free or prepare the spare-parts for free.
(C) Should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all the correlative charges
(accommodation and food , round -trip tickets)

Certifications

Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h

HD Boiler offers a best in class facility,including

  • Fabrication area of 400,000 square meters
  • 150 Engineers
  • 600 Coded welders
  • 60 Licensed Inspectors (including NDT level-lll instructors)
  • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
  • ISO 90001:2008 Quality System
  • ASME Certificate of Utility Boiler
  • ASME‘S’ , ‘U’ and NB stamp authorization

Steam Circulating Fluidized Bed CFB Boiler For Industrial Power Station 75 T/h
