IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation
Specifications
Brand Name :
HD BOILER
Certification :
ISO9001 , SGS , TUV , ASME , EN
Place of Origin :
Zhangjiagang,China
MOQ :
5 tons
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Frame Package
Name :
Boiler Water Walls
Application :
Boiler System
Material :
Carbon Steel
Color :
Customer's Requirement
Standard :
ASME, EN, GB, IBR
Welding Way :
Submerged Arc Welding
Description

Nose Arch Water Wall Panels in ASME/Chinese Standard For Utility Boilers​

Introduction

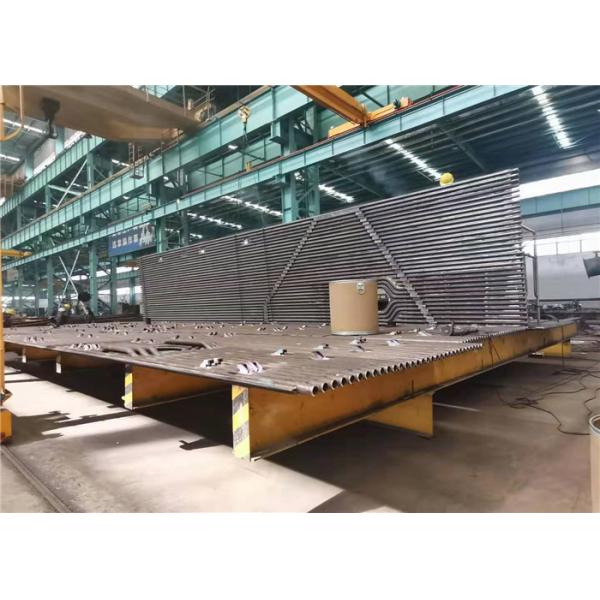

Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.

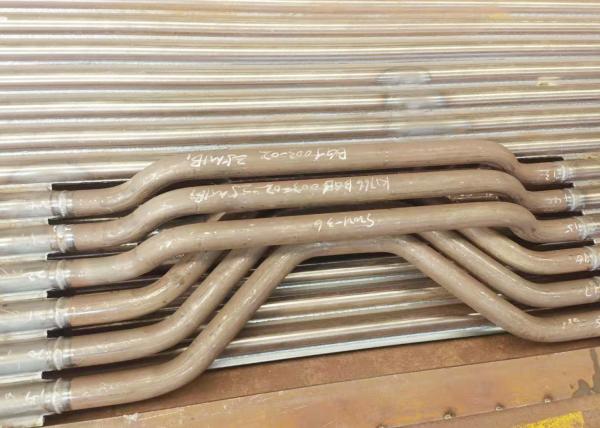

HDB provides replacement boiler water walls, burner openings, inspection ports and doors for utility and industrial boilers. Recently completed projects include rear and sidewall replacement as part of a complete reheater replacement and the studded burner throat with bifurcated tubes pictured to the right. Inspection ports, camera ports, and access doors of any brand are also available.

IBR Submerged Arc Welding CS Boiler Water Cooling Panel Heat Radiation

Application

The water wall is the main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end surface and proceed the heat exchange directly with the high temperature fume.

Description

1 Water wall panels are used in Waste Heat recovery boilers. We manufacture Water wall panels. These are fabricated out of carbon steel tubes to customers' drawings and specifications. Special care is taken for ovality and thinning at the bent portion, during fabrication.
2 We are manufacturing and supplying a comprehensive range of Waterwall Panels. The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. These tubes are known to provide heat uniformly that result in an increased heat output.
3 The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.
