Energy Saving Heat Preservation Gas Hot Water Boiler Spare Parts Water Wall Panels

Product Description

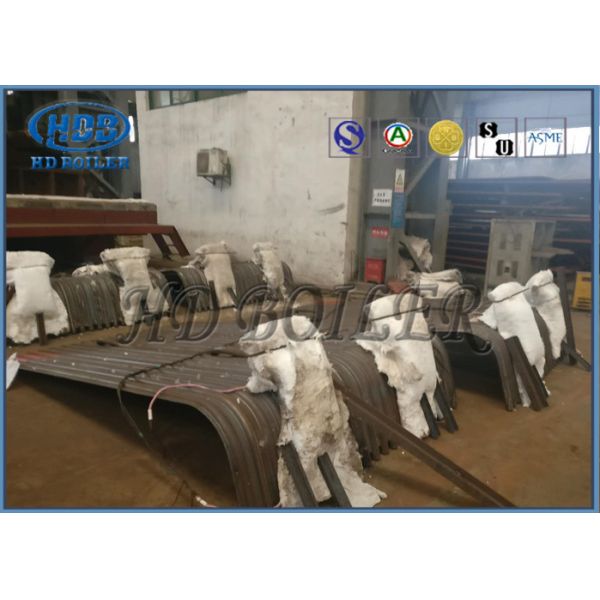

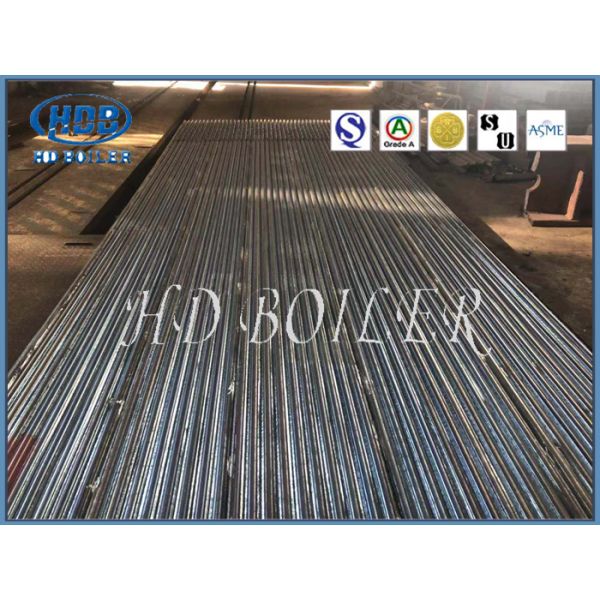

Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.

Parameter

Features

1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet

Adavantages

1.ensure the sealing of furnace wall and reduce air leakage in combustion chamber.

2.realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.

3.low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.

4.it is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.

5.compared with the light pipe, the heat absorption capacity of the pipe is improved.

6.improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
