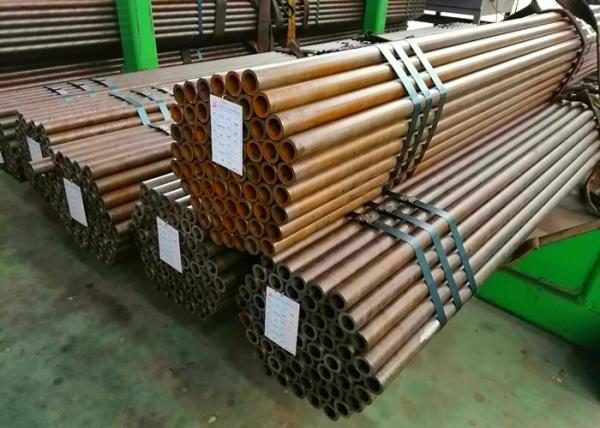

ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat
Specifications
Brand Name :
HDT
Model Number :
As required
Certification :
ISO9001-2008, API 5L, API 5CT
Place of Origin :
ZHANGJIAGANG CHINA
MOQ :
5T
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 10000 ton / month
Delivery Time :
60-75days
Packaging Details :
seaworthy packing for exporting
Price :
800 - 9000 USD / ton
Product Name :
Seamless Carbon Steel Boiler Tube
Application :
For high, middle, low pressure boiler and pressure purpose
Standard :
A192,SA192
Technique :
Seamless
Section Shape :
Round
Material :
Carbon Steel
Description

ASTM A179 ASME SA179 Seamless Carbon Steel Boiler Tubing / tube / tubes, Gr. A , GR.C​e

ASTM A179 ASME SA179 Seamless Carbon Steel Boiler Tubing / tube / tubes, Gr. A , GR.C​e

Application: For high, middle, low pressure boiler and pressure purpose

Production Standard, Grade, Steel No:

ASTM A178 Grade A, C, D

ASTM A179 Grade A, C, D

ASTM A192

ASTM A210 GradeA-1, C

BS3059-Ⅰ 320 CFS

BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2

EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2

EN10216-2 P195GH, P235GH, P265GH, TC1, TC2

DIN17175 ST35.8, ST45.8

DIN1629 ST37.0, ST44.0, ST50.0

JIS G3454 STPG370, STPG410

JIS G3461 STB340, STB410, STB440

GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB

GB9948 10, 20, 12CrMo, 15CMo

GB3087 10, 20

Delivery Condition:Annealed, Normalized, Normalized and Tempered

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength,

Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter BWG
25 22 20 18 16 14 12 10
Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429
12.7 1/2 0.214 0.263 0.356 0.457 0.612 0.754
15.88 5/8 0.271 0.334 0.455 0.588 0.796 0.995
19.05 3/4 0.327 0.405 0.553 0.729 0.895 1.236
25.4 1 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 1.342 1.774 2.244 2.894 3.5
50.8 2 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 1.949 2.554 3.244 4.214 5.13
76.2 3 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 2.729 3.609 4.584 5.974 7.27
101.6 4 4.134 5.254 6.854 8.35
114.3 4 1/2 4.654 5.924 7.734 9.43

ASTM A179 ASME SA179 Seamless Boiler Tubes Gr A GR C Oil Dip Surface Treat

Form of Tube: Straight & U-bend & Finned & Coiled
