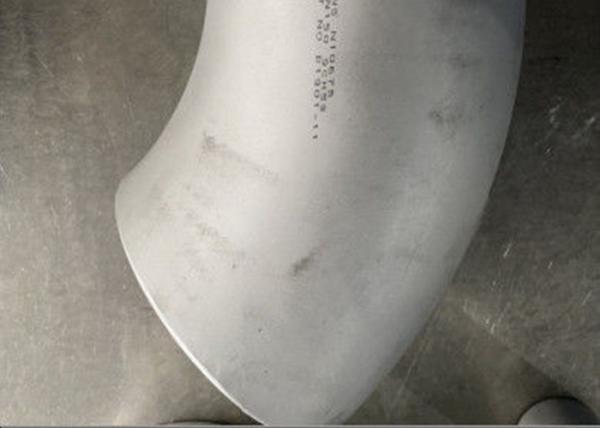

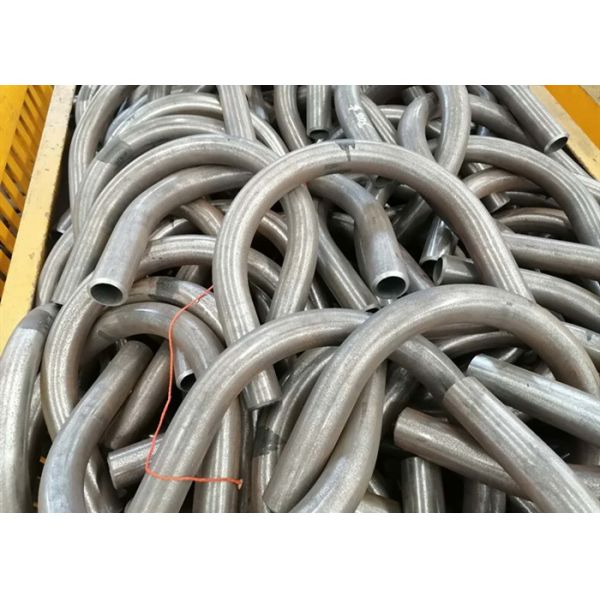

Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
Specifications
Brand Name :
HDT
Model Number :
WP316L
Certification :
ABS , BV, LR , DNV, GL , KR, TUV , ISO
Place of Origin :
China(Mainland)
MOQ :
5T
Price :
800 - 9000 USD / ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 10000 ton / month
Delivery Time :
60-75days
Packaging Details :
seaworthy packing for exporting
Material :
WP316L
Application :
boiler, energy, petrochemical, mining, food, paper, gas and fluid industry
Standard :
ASTM A403
Shape :
Elbow pipe
DNT :
ET,UT,PT,HT
Third Party Inspection :
BV, SGS
Description

Butt Wld Fittings , ASTM A403 WP304H , WP310H , WP316H, WP316L, WP317L , WP347H, WP321, ELBOW , TEE, CAP , REDUCER , B16.9

.

STAINLESS STEEL BUTTWELD FITTINGS A/SA403 WP316L

Trade Name Grade UNS #
Buttweld Fitings
316L WP316L S31609 A403* / SA403*

SA403 WP 316L Stainless Steel Pipe Fittings Specification
A403 WP 316L Stainless Steel Buttweld (B/W) Fittings Material Size
(in mm)		 Sch. & Swg. SS Fittings Specification SS Pipe Fittings Items
SA403 WP 316L Stainless Steel Seamless Fittings suppliers 15 NB
to
300 NB		 Sch. 5
to
Sch. XXs		 SA-403 B/W
ANSI B16.9		 SA403 WP316L SS 316L Bend (Long & Short)
R=2D,3D,5D,10D Etc

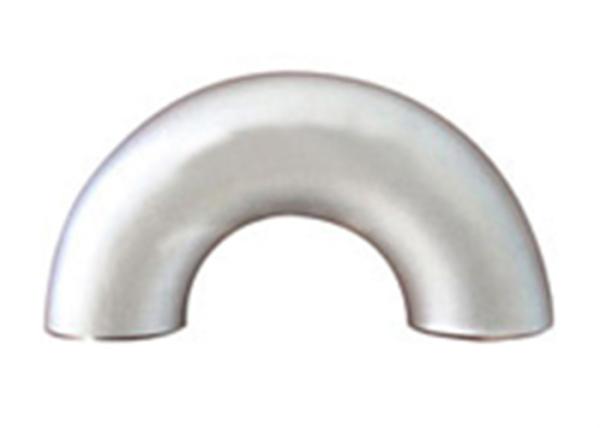

SA403 WP316L SS 316L Elbow ( 180o, 90o & 45o)
SA403 WP316L SS 316L Tee (Equal & Unequal)
SA403 WP316L SS 316L Stubend (Long & Short)
SA403 WP316L SS 316L Reducer (Con & Ecc)
CAP
SA403 WP316L SS 316L Nipple (Barrel)

Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Product range :

Size : 1/8"NB TO 48"NB IN

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Eccentric Reducer, Concentric Reducer

KS : KOREAN INDUSTRIAL STANDARDS
  • KS B 1522: Steel Butt Welding Pipe Fittings for Oidinary use and Fuel Gas
  • KS B 1541: Steel Butt Welding Pipe Fittings
  • KS B 1542: Steel Socket Welding Pipe Fittings
  • KS B 1543: Steel Plate Butt Welding Pipe Fittings
JIS : JAPANESE INDUSTRIAL STANDARDS
  • JIS B 2311: Steel Butt Welding Pipe Fittings for Ordinary use
  • JIS B 2312: Steel Butt Welding Pipe Fittings.
  • JIS B 2313: Steel Plate Butt Welding Pipe Fittings
  • JIS B 2316: Steel Socket Welding Pipe Fittings
Standard ASTM A403 /ASME SA403 | WP-W | ANSI B16.9/MSS SP-43

This grade is particularly useful in control and instrumentation tubing applications where 316 and 317L are not suitable.

Available tube product forms

Typical Applications

Typical manufacturing specifications

  • ASTM A213
  • ASTM A269
  • ASTM A312
  • BS EN 10216 pt.5
  • Also individual customer specifications.

Industries predominantly using this grade

TECHNICAL DATA

Mechanical Properties

Temper Annealed
Tensile Rm 71 ksi (min)
Tensile Rm 490 MPa (min)
R.p. 0.2% Yield 32 ksi (min)
R.p. 0.2% Yield 220 MPa (min)
Elongation (2” or 4D gl) 35 % (min)


Physical Properties (Room Temperature)

Specific Heat (0-100°C) 450 J.kg-1.°K-1
Thermal Conductivity 11.5 W.m -1.°K-1
Thermal Expansion 15.8 mm/m/°C
Modulus Elasticity 190 GPa
Electrical Resistivity 9.52 μohm/cm
Density 7.95 g/cm3


Chemical Composition (% by weight)

Element Min Max
C - 0.2
Mn - 2
Ni 23 28
Cr 19 23
S - 0.3
Mo 4 5
N - 0.1
Cu 1 2
P - 0.03
Si - 0.7

Forged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends ElbowsForged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends ElbowsForged Elbow Steel Boiler Tubes / 90° 45° SR 5'' SCH10S Stainless Steel Bends Elbows
