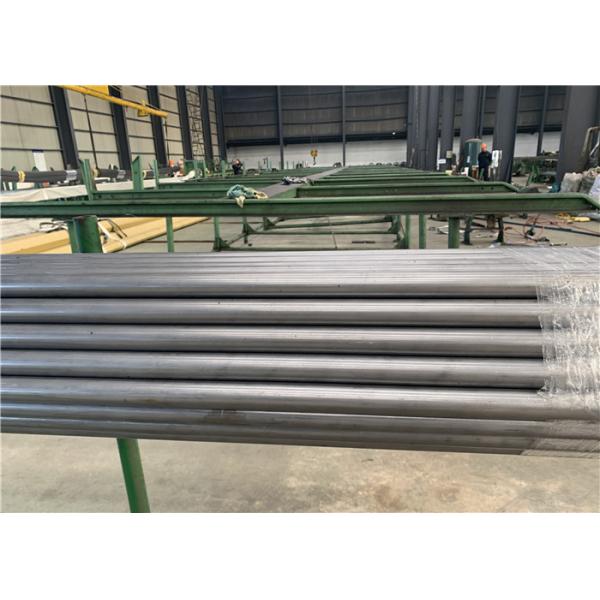

Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
Specifications
Brand Name :
HDT
Place of Origin :
Jiangsu , China
MOQ :
5T
Price :
800 - 9000 USD / ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 10000 ton / month
Delivery Time :
60-75days
Packaging Details :
seaworthy packing for exporting
Product Name :
Carbon Steel Seamless Boiler Tube
Application :
Tubular Heat Exchanger and Condenser
Third Party Inspection :
BV,SGS,ASP
Certificate :
ISO9001-2008, API 5L, API 5CT
Description

Seamless cold drawn low carbon steel Steel A179 boiler pipe DIN 2458

A179 seamless steel pipe is widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.

ASTM A179 covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat-exchange, condensers, and similar heat transfer apparatus. Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.

Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping

Chemistry Composition:

C, %
Mn, %
P, %
S, %
0.06-0.18
0.27-0.63
0.035 max
0.035 max

Mechanical Properties:

Yield Strength (Mpa)
Tensile Strength (Mpa)
Elongation, %
Hardness, HRB
≥180
≥325
35 min
72 max

Application:

A179 seamless steel pipe is widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.
Standard:ASTM A179
Delivery time : Promptly ( Stock) or 10-40 days (Production) Stock : some are Available MTC: Available

Outside Diameter & Tolerance

Outside Diameter, mm
Tolerance, mm
3.2≤OD＜25.4
±0.10
25.4≤OD≤38.1
±0.15
38.1＜OD＜50.8
±0.20
50.8≤OD＜63.5
±0.25
63.5≤OD＜76.2
±0.30
76.2
±0.38

Wall thickness & Tolerance

Outside Diamter, mm
Tolerance, %
3.2≤OD＜38.1
+20/-0
38.1≤OD≤76.2
+22/-0

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on.
Max length: 27000mm, also U bending can be offered.

Certification

Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping

Seamless Cold Drawn A179 DIN 2458 Insulated Steam Boiler Piping
