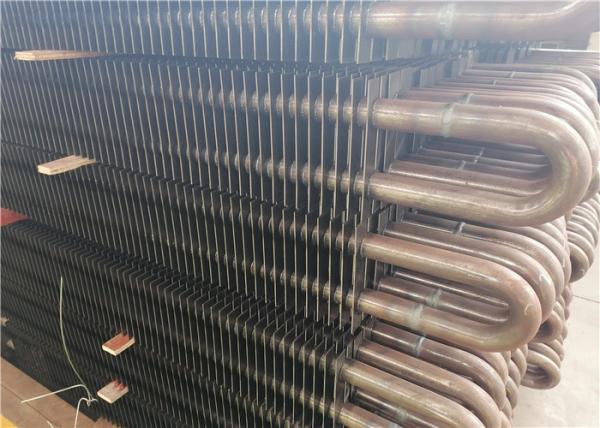

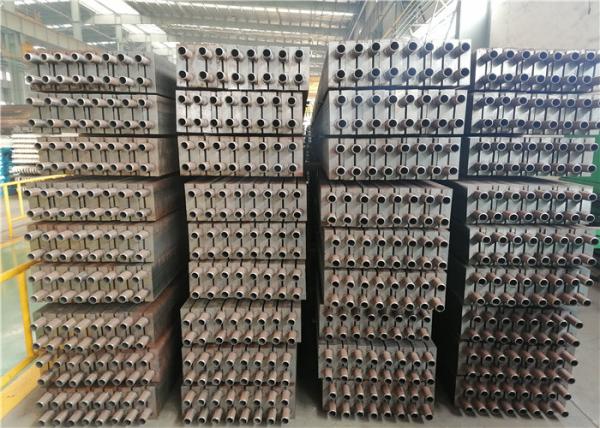

SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance
Specifications
Brand Name :
HDT
Model Number :
Boiler Fin Tube
Certification :
ISO9001,ASME,Grade A,SGS,EN,TUV
Place of Origin :
CHINA
MOQ :
20 tons
Price :
800 - 6,000 USD per ton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
About 10,000 tons per month
Delivery Time :
60-75days after getting the down payment or L/C
Packaging Details :
seaworthy packing for exporting
Type :
Fin Tube,Heat Exchanger Tube
Application :
Heater Parts,Heat Exchanger
Fin material :
carbon steel,stainless steel,304L/316LStainless Steel
Packing :
Seaworthy Packing of fin tube
Color :
Customized
Package :
Wooden case with steel frame,In bundles,etc.
Description

SA192 H Type Carbon Steel Fin Tube Assembly For Heating Module

Product Description

1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.

2.Fins are used to increase the effective surface area of heat exchanger tubing.

3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.

Fin tube heat transfer area is 8 times than the light tube, high efficiency heat exchange, more advanced than the other heat exchange products.

Application: Boiler Economizer, Heat Exchange, Power Plant Waste Heat Boiler,Petrochemical Engineering.

H finned tube is called square finned tube, there are two types of H finned tube, one is a single tube, usually called square finned tube, the other is a double tube, usually called rectangular finned tube. And according to customer requirements manufacturing. Due to its rectangular shape, it provides a larger surface area than spiral finned tubes. Because of the larger surface area available, these finned tubes are primarily used in air heating applications to reduce the overall size of the equipment.

H-type tube, has a high rate of fusion welds and weld tensile strength. There is little contact resistance, and heat transfer performance and scalability are additional advantages. The H-fin tube is assembled with the H economizer, which has high efficiency, low resistance, and light weight. Compared to the traditional fin tube or spiral tube the H-fin tube can greatly expand the heating surface. When the extent of the effect of heat transfer is the same. The H-fin tube economizer takes up less space. In addition to the H economizer, H superheater, H air heater, and many other products. The H-fin tube has been included in the “Chinese high-tech product catalog”

Technical parameter

Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification

Features

1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement

Details

1.Our products can be modified according to our customers' needs and the situation.

2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.
3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

Quality Control

1 Impact test and Strength calculation report with applied materials information.
2 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.
3 X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.
4 Hydraulic test report: ensure the standard working pressure and safety.

Structure

Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

SA192 H Type Carbon Steel Fin Tube Assembly corrosion resistance

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
