ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube
Specifications
Brand Name :
HDT
Model Number :
Boiler Fin Tube
Certification :
ISO9001,ASME,Grade A,SGS,EN,TUV
Place of Origin :
CHINA
MOQ :
5T
Price :
800 - 9000 USD / ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 10000 ton / month
Delivery Time :
60-75days
Packaging Details :
seaworthy packing for exporting
Type :
Fin Tube,Heat Exchanger Tube
Application :
Heater Parts,Heat Exchanger
Fin material :
carbon steel,stainless steel,304L/316LStainless Steel
Packing :
Seaworthy Packing of fin tube
Color :
Customized
Package :
Wooden case with steel frame,In bundles,etc.
Description

Boiler Stainless Steel Shell And Fin Tubes For Heat Exchangers Industrial Boiler ASME

Product Description

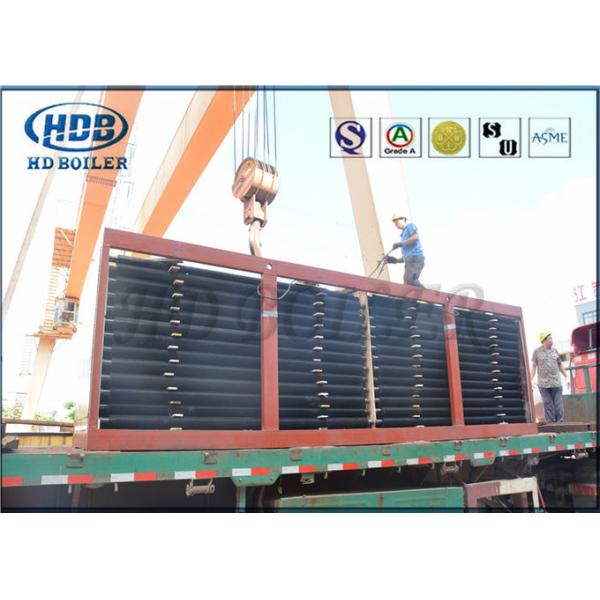

1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.

2.Fins are used to increase the effective surface area of heat exchanger tubing.

3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.

Technical parameter

Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification

Features

1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement

Details

1.Our products can be modified according to our customers' needs and the situation.

2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.
3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

Quality Control

1 Impact test and Strength calculation report with applied materials information.
2 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.
3 X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.
4 Hydraulic test report: ensure the standard working pressure and safety.

ASME Heat Exchangers 316L Stainless Steel Shell Boiler Fin Tube

Company Introduction

1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization
