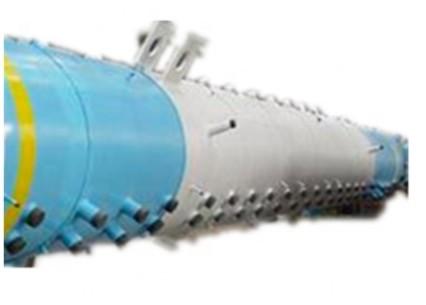

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized
Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized
Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized
Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized
Specifications
Brand Name :
ORL Power
Model Number :
Customization
Certification :
ISO9001/SGS/TUV/ASME/EN
Place of Origin :
Zhangjiagang,Jiangsu,China
MOQ :
1 Set/Sets 10tons
Price :
Contact me | Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Ton/Tons per Month
Delivery Time :
50~100 Days
Packaging Details :
Iron Frame Package
Condition :
New
Type :
Natural Circulation/Once Through
Usage :
Industry/Power Station
Structure :
Fire/Water Tube
Pressure :
High/Low Pressure
Style :
Style
Fuel :
Coal/Gas/Oil-fired, Water Heat
Output :
Hot Water/Steam
Dimension(L*W*H) :
Customization
Weight :
10~1000ton
Product name :
Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution
Keywords :
Boiler parts
Application :
Power plant boiler or industry boiler
Description

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Description

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.

Product parameter

Product Name Boiler Steam Drum ( Steam Water Separator )
Applied Area Natural circulation boiler
Drum Shell Plate Material

- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70

- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material Same as shell
Nozzle Tube Material As per design
Standard China GB, ASME, EN
Manufacturer Grade China A Grade, ABS Certificated, TUV Certificated
Working Temperature Saturation Temperature at rated pressure
Working Pressure 1.6 MPa ~ 22.5 MPa

Shell Plate Thickness

(Drum Wall Thickness)

 ≤150 mm
Drum Diameter ≤3,200 mm
Drum Length ≤25,000 mm
Welding

- Shell : SMAW, SAW

- Nozzle tube : GTAW (TIG), SMAW
Welding NDT

- Shell longitudinal seam : 100% RT, 100% UT

- Shell circumferential seam : 100% RT, 15% UT

- Nozzle tube angle seam : 100% UT, 100% MT

Boiler Parts

Boiler Super Heater,Boiler High Temp Superheater,Boiler Cyclone Separator,Boiler Flue,Boiler Heat Pipe Air Preheater,Boiler Gen Bank,Boiler Heat Pipe Elements,Boiler Tube Pin,Boiler Tubeshield,Boiler Ditch Tube

Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu Province.

ORL Power is a leading company and exporter of industrial boilers,power plant boilersand boiler parts (including steam drum, membrane waterwall panel,header,economizer, evaporator, superheater,H-fin economizer, spiral fin tube, air preheater, heat pipe, flue etc.), seamless steel tubes/pipes and ERW steel pipes.ORL provides our customer with full range of services including boiler design, fabrication, installation and commissioning, boiler maintenance, and supervision at site. Our product and service include design and manufacture industrial boilers, pressure vessels and tanks, and pressure parts for power plant boilers (600MW, or 1000MW).

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Company Information

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Product Description

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Boiler Parts

Boiler Super Heater,Boiler High Temp Superheater,Boiler Cyclone Separator,Boiler Flue,Boiler Heat Pipe Air Preheater,Boiler Gen Bank,Boiler Heat Pipe Elements,Boiler Tube Pin,Boiler Tubeshield,Boiler Ditch Tube

Production Workshop

Boiler Product Production

Boiler Cyclone Separator WorkShop, Boiler Coil Workshop, Boiler Waterwall Workshop.

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Testing Center

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Boiler Product Test

Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection

Packaging & Shipping

Condensing Boiler Equipment Pressure Drum Low Fuel Non Pollution ORL Customized

Contact Information

  • ADD: 11 East Renmin Road, Zhangjiagang City, Jiangsu, China
  • Phone:+86 0512-56770166
  • E-mail: info@orlpower.com
  • Website: www.orlpower.com
