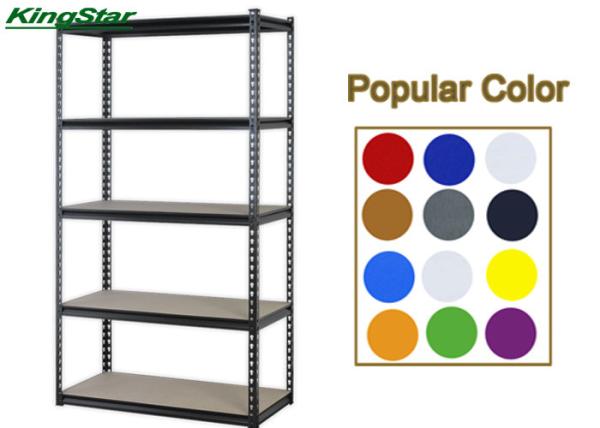

MDF Deck Boltless Garage Shelving Unit 200Kg Load Capacity , 30Cm Depth
MDF Deck Boltless Garage Shelving Unit 200Kg Load Capacity , 30Cm Depth
Specifications
Model Number :
RC5-RZ(200)902L
Place of Origin :
China
MOQ :
100
Price :
negotiable
Payment Terms :
TT, LC, DP, DA
Supply Ability :
50000pc per month
Delivery Time :
35days
Packaging Details :
brown mail box
Layers :
5
Load capacity :
200kg
Surface finish :
Powder coated
Stand :
powder coated
Material of deck :
MDF
Beam shape :
Z
Brand Name :
Kingstar
Certification :
BSCI,FSC
Description

Garage Using 5 Layer Boltless Storage Metal Shelving , 200Kg Capa , 30Cm Depth

Special notes:

1. If you assemble it in 5 layers , 8pieces end feet will be needed.
2. When you assemble it in 3+2 layers , 16pieces end feet is requested.
3. Loading goods should be uniformly distributedly.
4. Do not use in damp or wet conditions.
5. Load heavy goods on the lower shelves and lighter goods on the higher shelves.
6. We recommend shelvings over 2000mm high are fixed to the wall where possible.

Description :

Assembled dimension: 900Lx350Wx1830Hmm

Material: steel&MDF

Upright: steel material in powder coated finish

Upright qty: 8pieces

Long beam: steel material , Z shape , with rivets

Long beam qty: 8pieces

Short beam: steel material , Z shape , with rivets

Short beam qty: 8pieces

Shelf: MDF board , 5pieces

End feet: plastic material , 8pieces or 16pieces

Special Features:

1. This boltless storage shelving has 5 layers.

2. This boltless storage shelving is common lengthe of 900mm.

3. It is with depth of 350mm.

4. Steel upright is with poweder coated to be very strong.

5. Long and short beam is in Z shape to be heavy duty.

6. Capacity for each layer could be 200kg,totally is 1000kg for one unit shelving.

7. Assembly is very easy since this industrial shelving is boltless , without any bolts and nuts.

8. Assembled way is depending on your space request. You could assemble it in 5 layers or you could assemble it in 3+2layers.
