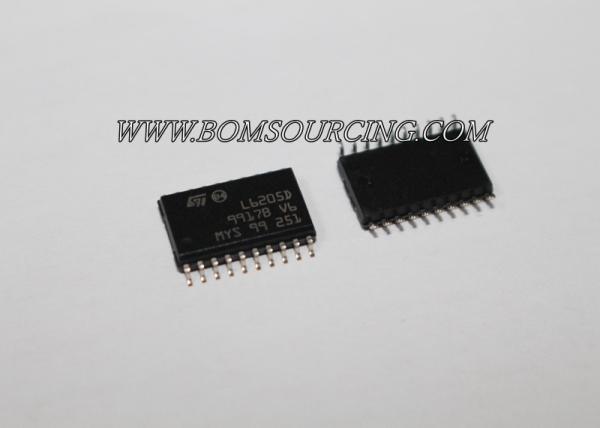

L6205d013tr Motor Driver Integrated Circuit IC Chip Parallel Soic20 SMD Mounting Type
L6205d013tr Motor Driver Integrated Circuit IC Chip Parallel Soic20 SMD Mounting Type
Specifications
Brand Name :
STM
Model Number :
L6205D013TR
Certification :
CE
Place of Origin :
CN
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10Kpcs per year
Delivery Time :
1-2 working days
Packaging Details :
Tape and Reel
Goods Condition :
Brand New
Part Status :
Active
Lead Free / Rohs :
Complaint
Function :
driver
Mounting Type :
SMD
Package :
SOIC20
Description

L6205D013TR MOTOR DRIVER IC Chip Parallel SOIC20

OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
5.6A OUTPUT PEAK CURRENT (2.8A DC)
RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C
OPERATING FREQUENCY UP TO 100KHz
NON DISSIPATIVE OVERCURRENT PROTECTION
PARALLELED OPERATION
CROSS CONDUCTION PROTECTION
THERMAL SHUTDOWN
UNDER VOLTAGE LOCKOUT
INTEGRATED FAST FREE WHEELING DIODES TYPICAL APPLICATIONS
BIPOLAR STEPPER MOTOR
DUAL OR QUAD DC MOTOR

DESCRIPTION
The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPowerBCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP20 (16+2+2), PowerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.

ManufacturerSTMicroelectronics
Series-
Packaging Tape & Reel (TR)
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DCBrushed DC
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceParallel
TechnologyBiCDMOS
Step Resolution-
ApplicationsGeneral Purpose
Current - Output2.8A
Voltage - Supply8 V ~ 52 V
Voltage - Load8 V ~ 52 V
Operating Temperature-25°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-SOIC (0.295", 7.50mm Width)
Supplier Device Package20-SOIC
Base Part NumberL6205
