MAX1487CSA+T Slew Rate Limited RS-422 RS485 Transceiver IC SMD Mounting Type 2.5Mbps Data Rate
MAX1487CSA+T Slew Rate Limited RS-422 RS485 Transceiver IC SMD Mounting Type 2.5Mbps Data Rate
Specifications
Brand Name :
MAXIM
Model Number :
MAX1487CSA+T
Certification :
CE
Place of Origin :
CN
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10Kpcs per year
Delivery Time :
1-2 working days
Packaging Details :

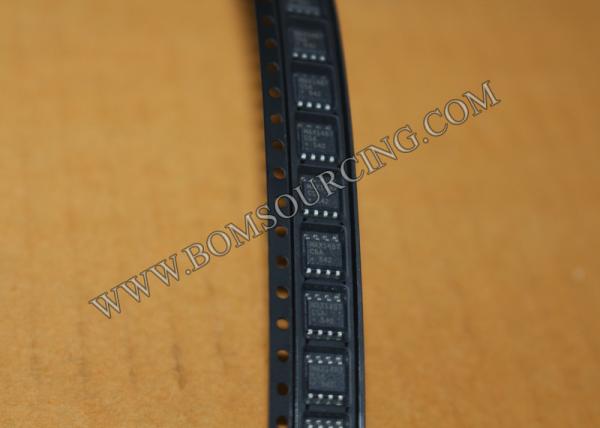

Tape and Reel
Goods Condition :
Brand New
Part Status :
Active
Lead Free / Rohs :
Complaint
Function :
Transceiving
Mounting Type :
SMD
Package :
SOP8
Description

MAX1487CSA+ Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers IC Chip


General Description

The MAX481, MAX483, MAX485, MAX487–MAX491, and MAX1487 are low-power transceivers for RS-485 and RS- 422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481, MAX483, and MAX487 have a low-current shutdown mode in which they consume only 0.1µA. All parts operate from a single 5V supply. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The MAX487 and MAX1487 feature quarter-unit-load receiver input impedance, allowing up to 128 MAX487/ MAX1487 transceivers on the bus. Full-duplex communications are obtained using the MAX488–MAX491, while the MAX481, MAX483, MAX485, MAX487, and MAX1487 are designed for half-duplex applications.

Applications

Low-Power RS-485 Transceivers
Low-Power RS-422 Transceivers
Level Translators Transceivers for EMI-Sensitive Applications Industrial-Control Local Area Networks

ManufacturerMaxim Integrated
Series-
Packaging Tube
Part StatusActive
TypeTransceiver
ProtocolRS422, RS485
Number of Drivers/Receivers1/1
DuplexHalf
Receiver Hysteresis70mV
Data Rate2.5Mbps
Voltage - Supply4.75 V ~ 5.25 V
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Base Part NumberMAX1487
