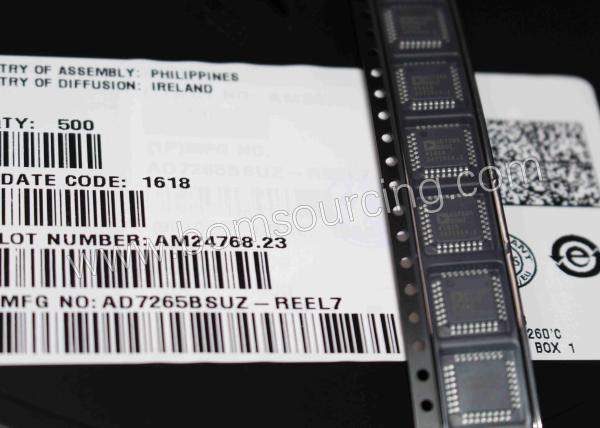

AD7265BSUZ-REEL7 12 Bit Analog to Digital Converter 6, 12 Input 2 SAR 32-TQFP
AD7265BSUZ-REEL7 12 Bit Analog to Digital Converter 6, 12 Input 2 SAR 32-TQFP
Specifications
Brand Name :
Analog Devices Inc.
Model Number :
AD7265BSUZ-REEL7
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
negotiate
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
Consultation
Delivery Time :
2-3 working days
Packaging Details :
500PCS/Standard Package
Number of Bits :
12
Sampling Rate (Per Second) :
1M
Data Interface :
SPI, DSP
Description

AD7265BSUZ-REEL7 12 Bit Analog to Digital Converter 6, 12 Input 2 SAR 32-TQFP

FEATURES

Dual 12-bit, 3-channel ADC

Throughput rate: 1 MSPS

Specified for VDD of 2.7 V to 5.25 V

Power consumption

7 mW at 1 MSPS with 3 V supplies

17 mW at 1 MSPS with 5 V supplies

Pin-configurable analog inputs

12-channel single-ended inputs

6-channel fully differential inputs

6-channel pseudo differential inputs

70 dB SINAD at 50 kHz input frequency

Accurate on-chip reference: 2.5 V

±0.2% maximum @ 25°C, 20 ppm/°C maximum

Dual conversion with read 875 ns, 16 MHz SCLK

High speed serial interface

SPI®-/QSPI™-/MICROWIRE™-/DSP-compatible

−40°C to +125°C operation

Shutdown mode: 1 μA maximum

32-lead LFCSP and 32-lead TQFP

Number of Bits 12
Sampling Rate (Per Second) 1M
Number of Inputs 6, 12
Input Type Differential, Pseudo-Differential, Single Ended
Data Interface SPI, DSP
Configuration MUX-S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 2
Architecture SAR
Reference Type External, Internal
Voltage - Supply, Analog 2.7V ~ 5.25V
Voltage - Supply, Digital 2.7V ~ 5.25V
Features Simultaneous Sampling
Operating Temperature -40°C ~ 125°C
