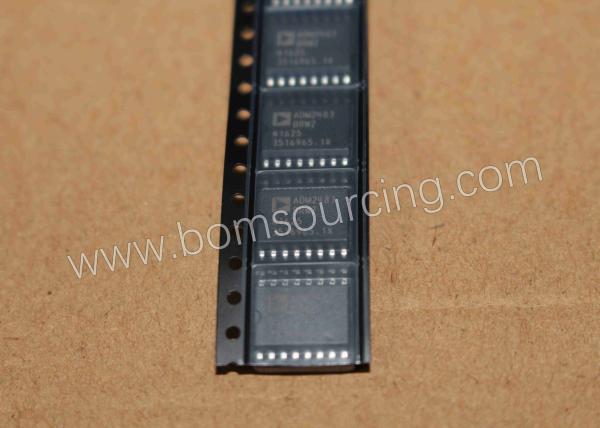

ADM2483BRWZ RS422, RS485 Digital Isolator 2500Vrms 3 Channel 500kbps 25kV/µs CMTI 16-SOIC
ADM2483BRWZ RS422, RS485 Digital Isolator 2500Vrms 3 Channel 500kbps 25kV/µs CMTI 16-SOIC
Specifications
Brand Name :
Analog Devices Inc.
Model Number :
ADM2483BRWZ
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
negotiate
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
Consultation
Delivery Time :
2-3 working days
Packaging Details :
1000PCS/Standard Package
Type :
RS422, RS485
Voltage - Isolation :
2500Vrms
Operating Temperature :
-40°C ~ 85°C
Voltage - Supply :
3V, 5V
Description

FEATURES

RS-485 transceiver with electrical data isolation

Complies with ANSI TIA/EIA RS-485-A and ISO 8482: 1987(E)

500 kbps data rate

Slew rate-limited driver outputs

Low power operation: 2.5 mA max

Suitable for 5 V or 3 V operations (VDD1)

High common-mode transient immunity: >25 kV/μs

True fail-safe receiver inputs

Chatter-free power-up/power-down protection

256 nodes on bus

Thermal shutdown protection

Safety and regulatory approvals

UL recognition: 2500 Vrms for 1 minute per UL1577

CSA Component Acceptance Notice #5A

VDE Certificate of Conformity

DIN EN 60747-5-2 (VDE 0884 Rev. 2): 2003-01

DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000

VIORM = 560 V peak

Operating temperature range: −40°C to +85°C

APPLICATIONS

Low power RS-485/RS-422 networks

Isolated interfaces

Building control networks

Multipoint data transmission systems

Type RS422, RS485
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 2/1
Channel Type Bidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 500kbps
Propagation Delay tpLH / tpHL (Max) -
Pulse Width Distortion (Max) -
Rise / Fall Time (Typ) 600ns, 600ns (Max)
Voltage - Supply 3V, 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
