2500Vrms General Purpose Digital Isolator IC 4 Channel 10Mbps CMTI 16 SOIC ADUM1400BRWZ
2500Vrms General Purpose Digital Isolator IC 4 Channel 10Mbps CMTI 16 SOIC ADUM1400BRWZ
Specifications
Brand Name :
Analog Devices Inc.
Model Number :
ADUM1400BRWZ
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
50pcs
Price :
negotiate
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
Consultation
Delivery Time :
2-3 working days
Packaging Details :
1000PCS/Standard Package
Type :
General Purpose
Voltage - Isolation :
2500Vrms
Data Rate :
10Mbps
Operating Temperature :
-40°C ~ 105°C
Description

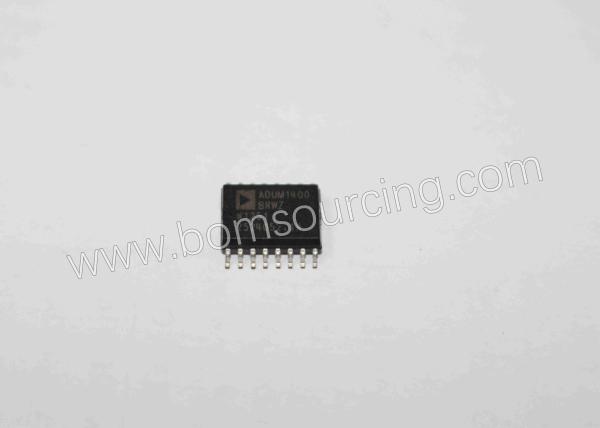

ADUM1400BRWZ General Purpose Digital Isolator 2500Vrms 4 Channel 10Mbps 25kV/µs CMTI 16-SOIC

GENERAL DESCRIPTION

The ADuM140x are 4-channel digital isolators based on Analog

Devices’ iCoupler® technology. Combining high speed CMOS

and monolithic air core transformer technology, these isolation

components provide outstanding performance characteristics

superior to alternatives such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices

remove the design difficulties commonly associated with

optocouplers. The typical optocoupler concerns regarding

uncertain current transfer ratios, nonlinear transfer functions,

and temperature and lifetime effects are eliminated with the

simple iCoupler digital interfaces and stable performance

characteristics. The need for external drivers and other discretes

is eliminated with these iCoupler products. Furthermore,

iCoupler devices consumes one-tenth to one-sixth the power of

optocouplers at comparable signal data rates.

The ADuM140x isolators provide four independent isolation

channels in a variety of channel configurations and data rates

(see the Ordering Guide). All models operate with the supply

voltage on either side ranging from 2.7 V to 5.5 V, providing

compatibility with lower voltage systems as well as enabling a

voltage translation functionality across the isolation barrier. In

addition, the ADuM140x provides low pulse-width distortion

(<2 ns for CRW grade) and tight channel-to-channel matching

(<2 ns for CRW grade). Unlike other optocoupler alternatives,

the ADuM140x isolators have a patented refresh feature that

ensures dc correctness in the absence of input logic transitions

and during power-up/power-down conditions.

Technology Magnetic Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 4/0
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 50ns, 50ns
Pulse Width Distortion (Max) 3ns
Rise / Fall Time (Typ) 2.5ns, 2.5ns
Voltage - Supply 2.7V ~ 5.5V
Operating Temperature -40°C ~ 105°C

List Of Other Electronic Components In Stock
SST25WF010-40-5I-SAF SST TS912IDT ST
SE5008DMDNC1-R104R SMART SN74CB3Q3251RGYR TI
PNX8009DBHN MC10H103MEL ON
TC7WB66FK(T5LMTM TOSHIBA MAX2373ETC+T MAXIM
R3112Q291C-TR-F RICOH CY7C68013A-100AXC CYPRESS
IR3093MPBF IR CY25561SC CYPRESS
HY57V64820HG HY BAV99DW-7-F DIODES
HD74HC00RPEL HITACHI TPCC8131LQ TOSHIBA
EP4CGX75CF23I7N ALTERA 531FB125M000DGR SILICON
NT5TU64M8DE-AC NANYA LTC4259ACGW#TRPBF LTC
MK2771-08S MICROCLOC BL3361 BL
DS90LV031TM NSC NJM2119M JRC
PCF8576DT/2 AQV210EHAX PANASONIC
OPA658P BB MAX9987ETP+T MAXIM
RT8152EGQW RICHTEK TPA6020A2RGWR TI
R1114D281D-TR-F RICOH FDS6982AS-NL FAIRE
MX25L1606EM1I-12G MXIC BT8370KPF MNDSPEED
INA193AIDBVT TI SPC5674FF3MVR3R FREESCALE
LTC2978UP LTC TL2905LC TLI
EPA2414B EPICOM LM393P PHILIPS
