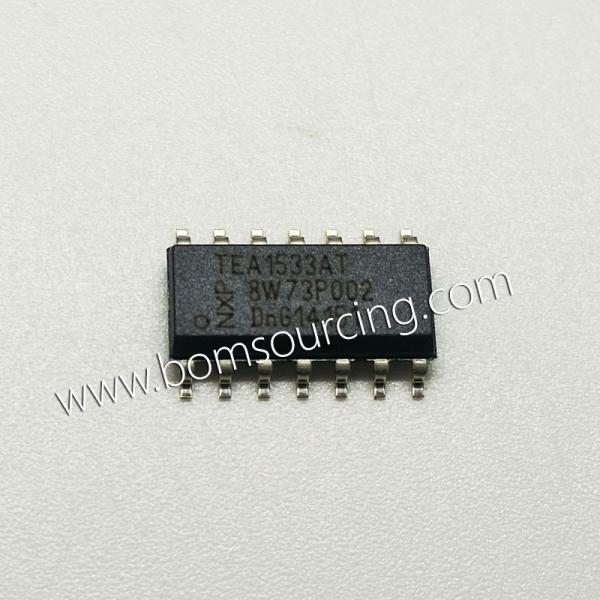

TEA1533AT Converter Offline Flyback Topology , SMPS Controller 25kHz-175kHz 250W
TEA1533AT Converter Offline Flyback Topology , SMPS Controller 25kHz-175kHz 250W
Specifications
Brand Name :
NXP
Model Number :
TEA1533AT
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
Smallest packaging/contact us
Price :
negotiate
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
Consultation
Delivery Time :
2-3 working days
Packaging Details :
2500PCS/Standard Package
Voltage - Breakdown :
650V
Voltage - Start Up :
11V
Voltage - Supply :
8.7V ~ 20V
Operating Temperature :
-20°C ~ 145°C
Description

TEA1533AT Converter Offline Flyback Topology 25kHz ~ 175kHz SMPS Controller

GENERAL DESCRIPTION

The GreenChip is the second generation of green Switched Mode Power Supply (SMPS) control ICs operating directly from the rectified universal mains. A high level of integration leads to a cost effective power supply with a very low number of external components. The special built-in green functions allow the efficiency to be optimum at all power levels. This holds for quasi-resonant operation at high power levels, as well as fixed frequency operation with valley switching at medium power levels. At low power (standby) levels, the system operates at a reduced frequency and with valley detection. The proprietary high voltage BCD800 process makes direct start-up possible from the rectified mains voltage in an effective and green way. A second low voltage BICMOS IC is used for accurate, high-speed protection functions and control. Highly efficient and reliable supplies can easily be designed using the GreenChipII control IC.

Output Isolation Isolated
Internal Switch(s) No
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 11V
Voltage - Supply (Vcc/Vdd) 8.7V ~ 20V
Duty Cycle -
Frequency - Switching 25kHz ~ 175kHz
Power (Watts) 250W
Fault Protection Current Limiting, Over Power, Over Temperature, Over Voltage
Control Features -
Operating Temperature -20°C ~ 145°C
