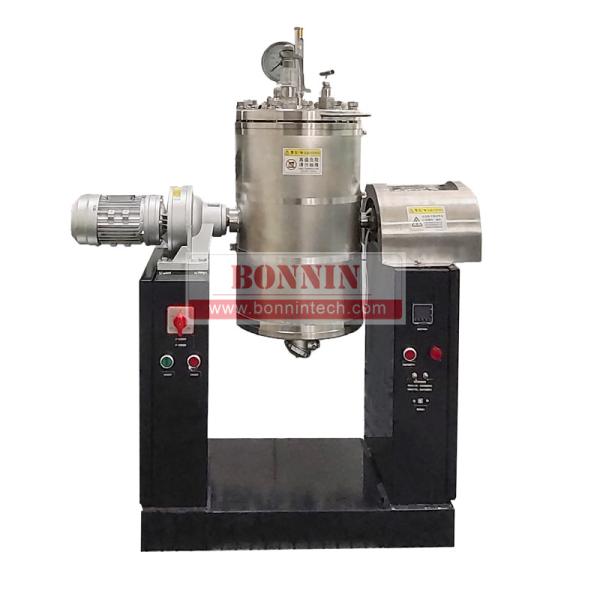

15L Laboratory Electric Heating Rotary Type Pulp Digestor, 15L Laboratory Electric Heating Pulp Digester ( Pulp Rotary Digestor)

BN-ZZ01 Laboratory electric heating pulp digestor is designed to simulate the working principle of the steaming ball in production. According to different process requirements, the expected plant pulp can be obtained, so as to provide a basis for the production process to formulate the cooking process. At the same time, it can also be used for cooking other materials, especially in the fields of biomedicine and food processing. In addition, the digester can also be used to provide hot steam for other equipment in the laboratory.

Technical indicators:

• Digestor pot capacity: The available space of the container is 15.8L, and other capacities can be customized according to requirements.
• Digestor pot rotation speed: the pot body can rotate 360°, the rotation speed is ≈2r/min, with the sealing direction positioning configuration.
• High pressure safety valve: high performance original Taiwan brand safety valve
• Working pressure: standard working pressure 0~0.80Mpa, maximum safety protection pressure 1.2Mpa, others can be customized according to requirements).
• Temperature control: imported Omron temperature control system, the range is variable from normal temperature to 180°C,
• Motor speed: 1350r/min
• Heating power: 4.5kw, plate heating method.
• Motor power: 370w
• Temperature measurement accuracy: ±1℃
• Temperature control accuracy: ±3℃
• Selection method of pulp barrel: direct rotation of motor
• Base anti-rust layer: high temperature baking paint
• Body material: 304# stainless steel, resistant to strong acid and alkali, 316 stainless steel can be customized according to requirements
• Dimensions: 1030mm×510mm×1380mm
• Net weight: 125kg
• Gross weight: 175kg

FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
