Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
Specifications
Place of Origin :
China
Brand Name :
XCMG
Certification :
CE, ISO
Model Number :
SQ2SK1Q
MOQ :
1pc
Price :
negotiate
Packaging Details :
Ro-Ro
Delivery Time :
20 days
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Brand :
XCMG
Product Name :
Telescopic Boom Crane
Max. Lifting Capacity :
2.1 ton
Max. Lifting Moment :
4.2 T.M
Max. Lifting Height :
7.8m
Crane Weight :
640 kg
Oil Tank Capacity :
25L
Rotation Angle :
360° All Rotation
Max. Oil Flow of Hydraulic System :
20 L/min
Description

Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min

Quick Details:

Name: Telescoping boom crane, Lorry mounted crane, Hydraulic truck crane

Max. Lifting Capacity: 2.1 ton

Max. Lifting Moment: 4.2 T.M

Max. Oil Flow of Hydraulic System: 20 L/min

Max. Lifting height: 7.8meters

Brand: XCMG

Crane Weight: 640 kg

Oil Tank Capacity: 25 L

Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Telescopic boom crane widely used in transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions. They are the preferred equipment of modern logistics.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ2SK1Q is lifting capacity is 2.1tons, moment is 4.2T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Model

SQ2SK1Q

Unit

Max. Lifting Capacity

2100

kg

Max. Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max. Oil Flow of Hydraulic System

20

L/min

Max. Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

360° All Rotation

Crane Weight

875

kg

Installation Space

850

mm

Choice of Chassis

HFC1065KRT;

JX1050TGB23;J

X1060TSG23;

EQ1060GJ20D3;

EQ1092FJ;

EQ1092FJ1;

EQ1060TJ20D3

SQ2SK1Q Lifting capability diagram

Working radius (m)

2.1

2.5

3

Lifting capacity (kg)

2100

1800

1000

Competitive Advantage:

1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.

4, Compact Hinge point design take up smaller space.

5, The worK is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing implulse equipment that make vehicle running safely

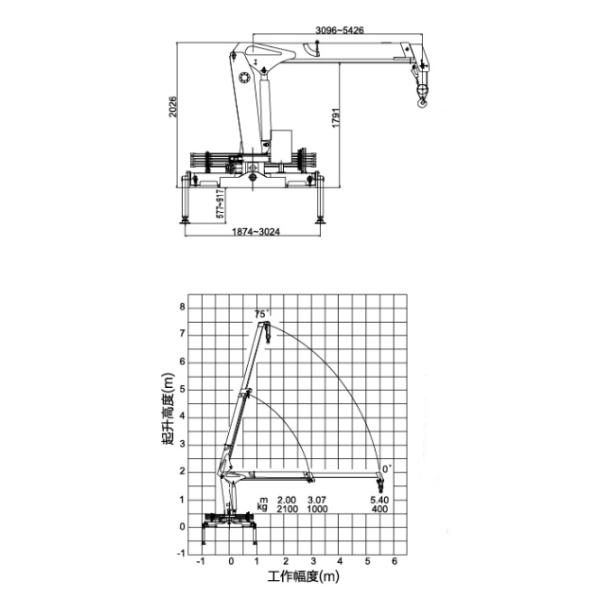

Dimension drawing

Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min

Optional parts:

1. Moment limited device
Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min

  1. Remote control equipment
    Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
  2. Anti-overwind magnet valve
    Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
  3. High seat on column
    Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
  4. Work light
    Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min
  5. Assisatant stabilizer leg
    Light Raise And Down XCMG Truck loader crane With 2.1 Ton, 20 L/min

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
