Specifications
Place of Origin :
China
Brand Name :
XCMG
Certification :
CE, ISO
Model Number :
SQ14ZK4Q
MOQ :
1pc
Price :
negotiate
Packaging Details :
Ro-Ro
Delivery Time :
20 days
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Brand :
XCMG
Product Name :
Lorry Mounted Crane
Max. Lifting Capacity :
14 ton
Max. Lifting Moment :
35 t.m
Max. Lifting Height :
14m
Crane Weight :
4800 kg
Rotation Angle :
(360°)All Rotation
Oil Tank Capacity :
220L
Description

Durable Safety 14 Ton Lifting Articulated Boom Crane, CE Certification

Quick Details:

Name: Knuckle boom truck mounted crane, Folding boom truck crane, Lorry mounted crane

Max. Lifting Capacity: 14 ton

Max. Lifting Moment: 35 t.m

Max. Oil Flow of Hydraulic System: 63 L/min

Max. Lifting Height:14meters

Brand: XCMG

Crane Weight: 4800 kg

Oil Tank Capacity: 220 L

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ14ZK4Q is lifting capacity is 14tons, moment is 35T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­

Specifications:

Model

SQ14ZK4Q

Unit

Max Lifting Moment

35

t.m

Max Lifting Capacity

14000

kg

Recommend Power Needed At Recommend Oil Flow

32

kw

Max Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

26

MPa

Oil Tank Capacity

220

L

Rotation Angle

(360°)All Rotation

.

Crane Weight

4800

kg

Installation Space

1300

mm

Choice of Chassis

BJ1317VNPJJ-S5; NXG1310D3ZEX

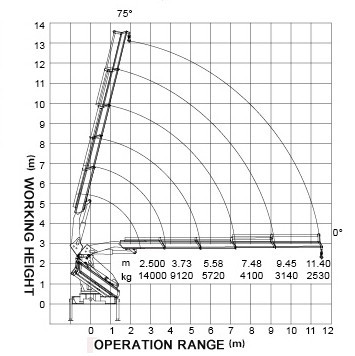

SQ14ZK4Q Lifting capability diagram

Working radius(m)

2.5

4.046

5.826

7.646

9.516

11.4

Lifting capacity(kg)

140000

8400

5478

4080

3148

245

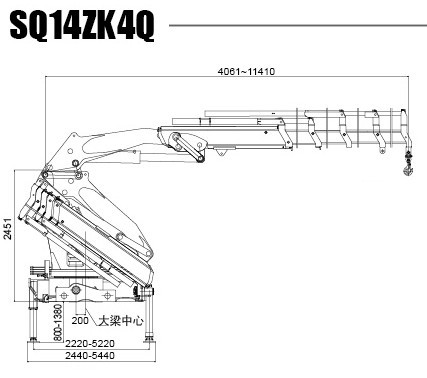

Dimension Drawing:

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

Optional parts:

1.Remote control equipment

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

2.Moment limited valve

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

3.High seat on column

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

4.JIB

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

5.Assisatant stabilizer leg

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm

Durable Safety 14 Ton Lifting Articulated Boom Crane , CE Certification

Competitive Advantage:

1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling
